200 Upgrade and Maintenance Manual TX120 S3
Expansion cards and backup units

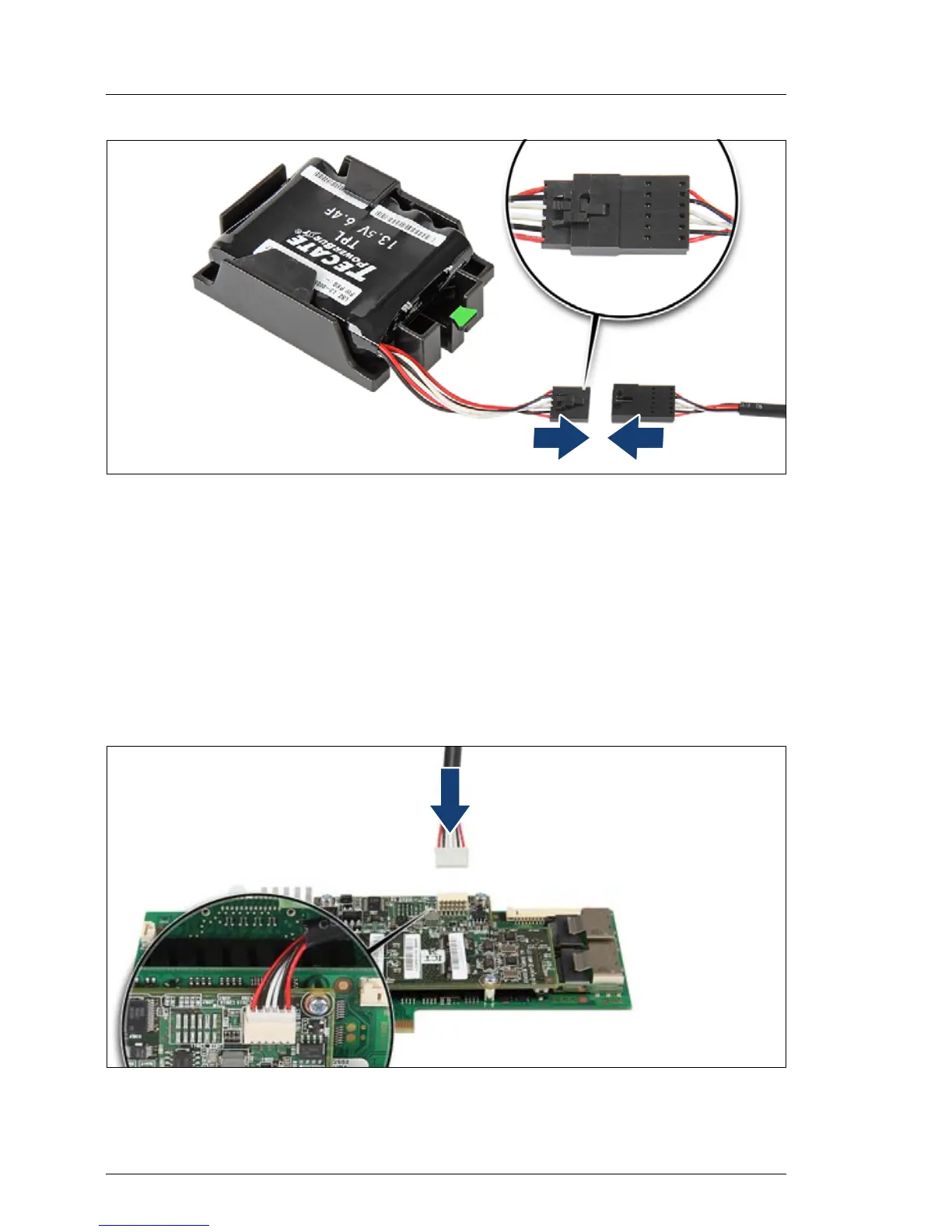

Figure 97: Connecting the FBU adapter cable to the FBU
Ê Connect the cable end on the FBU to the FBU adapter cable as shown.
9.3.2.5 Installing the FBU holder into the chassis
Ê Install the FBU holder into the chassis as described in section "Installing the
BBU holder into the chassis" on page 194.
9.3.2.6 Connecting the FBU adapter cable to the TFM
Figure 98: Connecting the FBU adapter cable to the TFM
Ê Connect the FBU adapter cable to the TFM.
