TX120 S3 Upgrade and Maintenance Manual 393
Cables
15.4.5 Concluding steps
Perform the following procedures to complete the task:
Ê Close the server cover as described in section "Closing the server" on
page 70.
Ê Reconnect the AC power cord to the power supply unit and secure it with a
cable tie as described in section "Connecting the server to the mains" on
page 73.
15.5 Replacing the ODD SATA cable

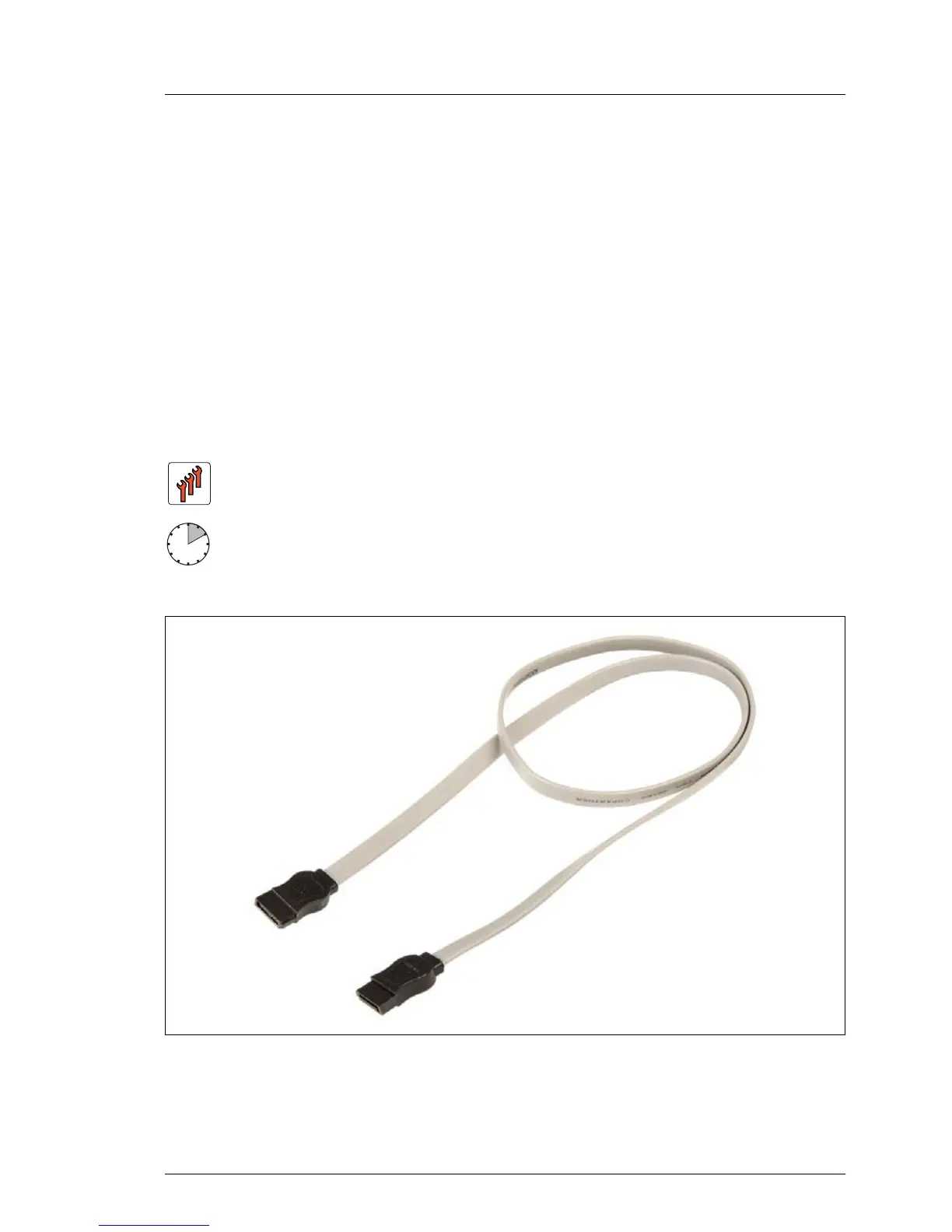

Figure 250: ODD SATA cable T26139-Y3928-V205
Field Replaceable Units (FRU)
Average task duration: 10 minutes
