TX120 S3
Upgrade and Maintenance Manual
65
Basic hardware procedures
4.3.3
Removing the hard disk
drive c
ove
r

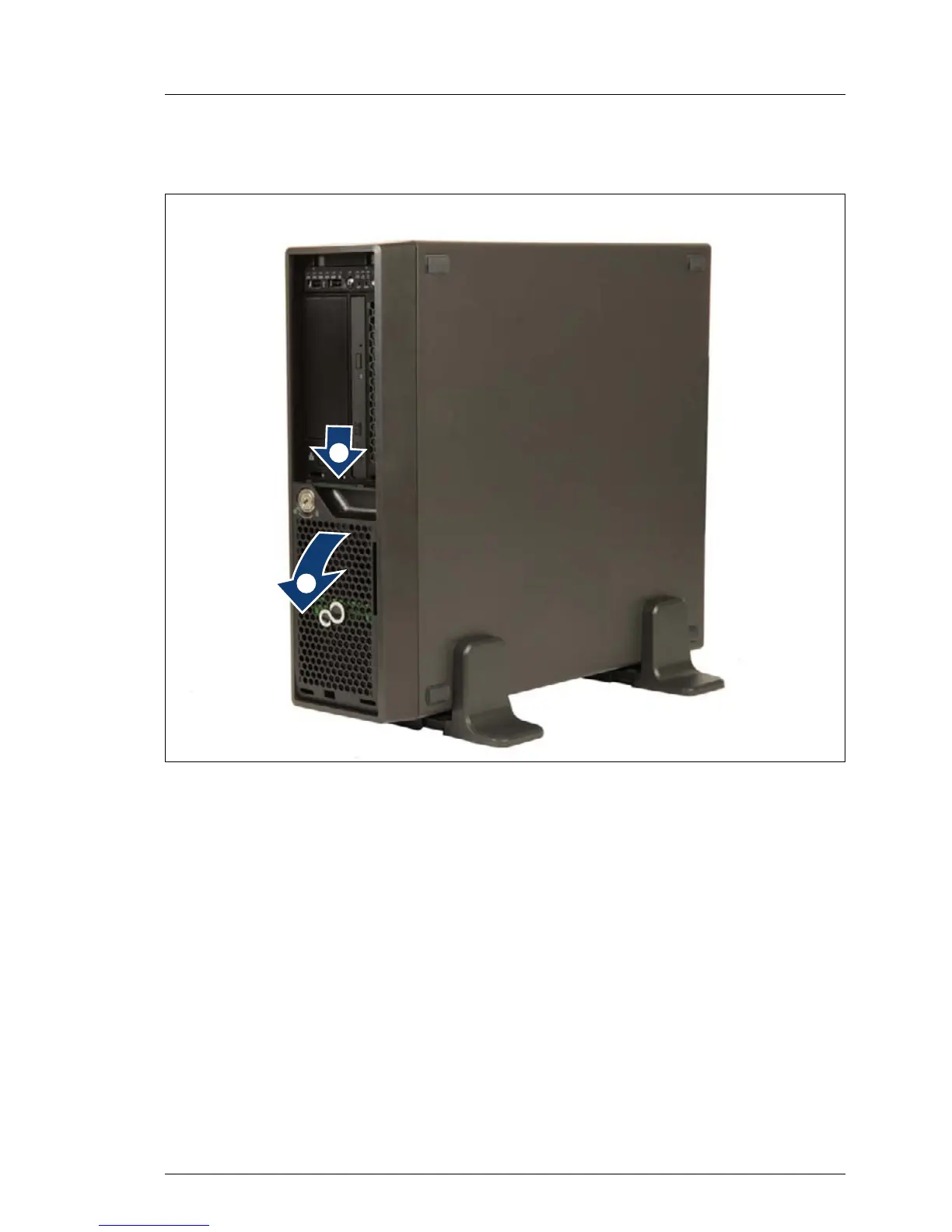

Figure 15: Opening the hard disk drive cover
Ê
T
urn the key clockwise.
Ê
Remove the key
.
Ê
Open the hard disk drive cover in the direction of the arrow
(1).
Ê
Remove the hard disk drive cover
(2).
/
0
64
66
