TX120 S3
Upgrade and Maintenance Manual
67
Basic hardware procedures
4.4.2
2.5-inch Hard disk driv
e vers
ion

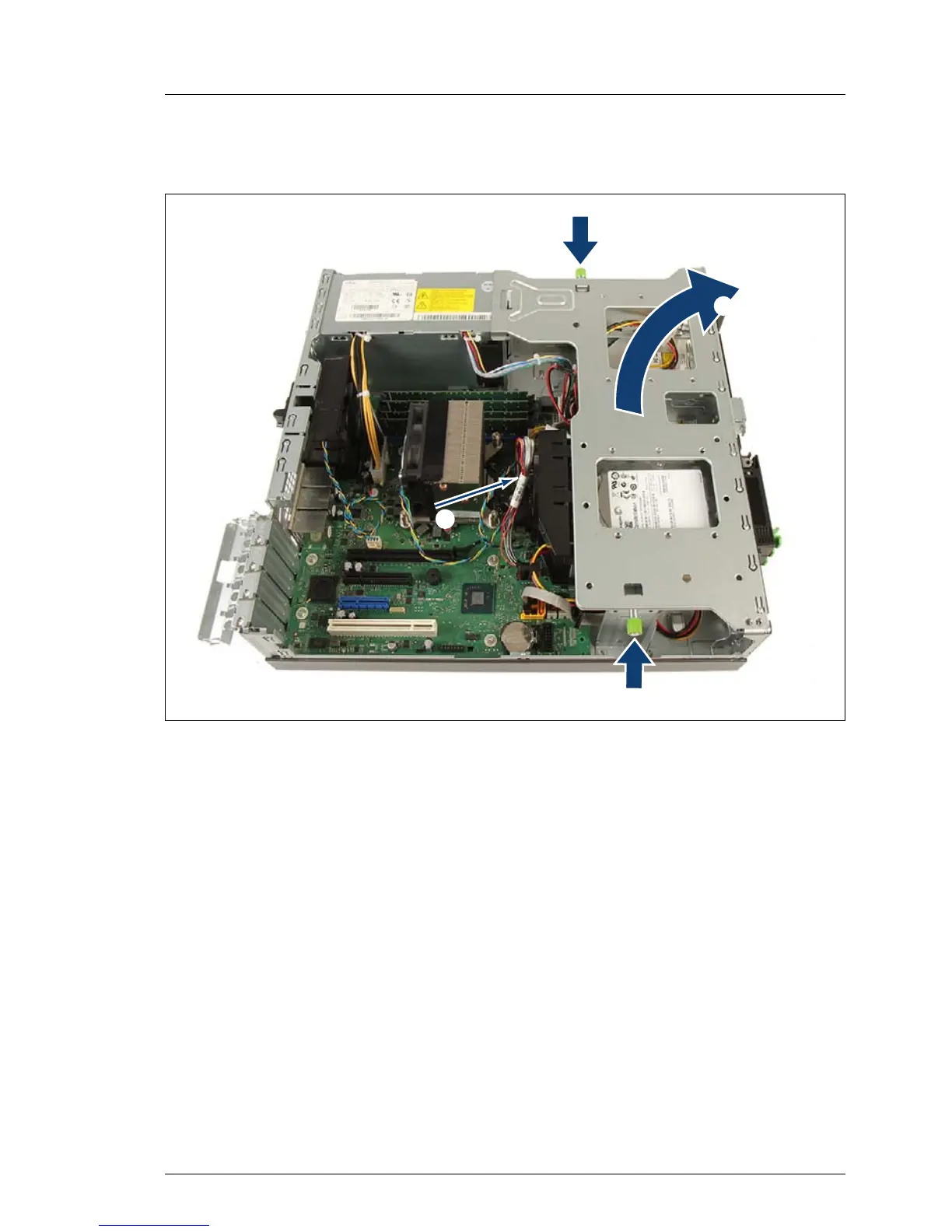

Figure 17: Opening t
he front cage
Ê
Loosen the two captive knurled thumb screws on the front cage
(1).
Ê
Remove the HDD fan cable from the system board
(2).
Ê
Carefully fold open the front cage
(3).
/
0
1
/
66
68
