68 Upgrade and Maintenance Manual TX120 S3
Basic hardware procedures
4.5 Closing the front cage
4.5.1 3.5-inch hard disk drive version

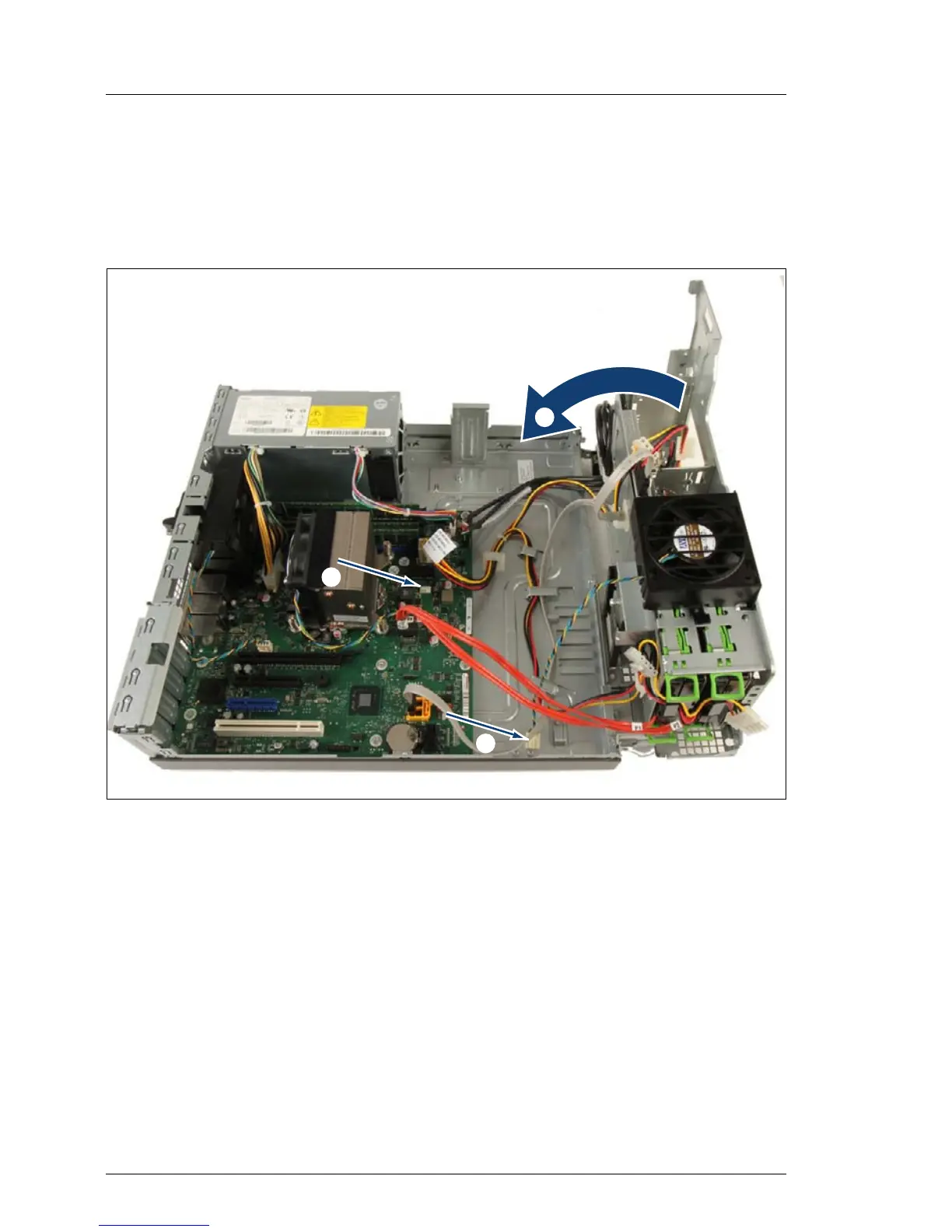

Figure 18: Closing the front cage
Ê Carefully close the front cage (1).
V CAUTION!
Ensure that none of the cables are strained or trapped!
Ê Tighten the captive knurled thumb screw on the front cage.
Ê Connect the front fan cable (2) to system board connector FAN2 SYS (3).
