TX120 S3
Upgrade and Maintenance Manual
145
Hard disk drives / solid state drives
7.4.1.3
Removing the air duct (if ap
plicable)

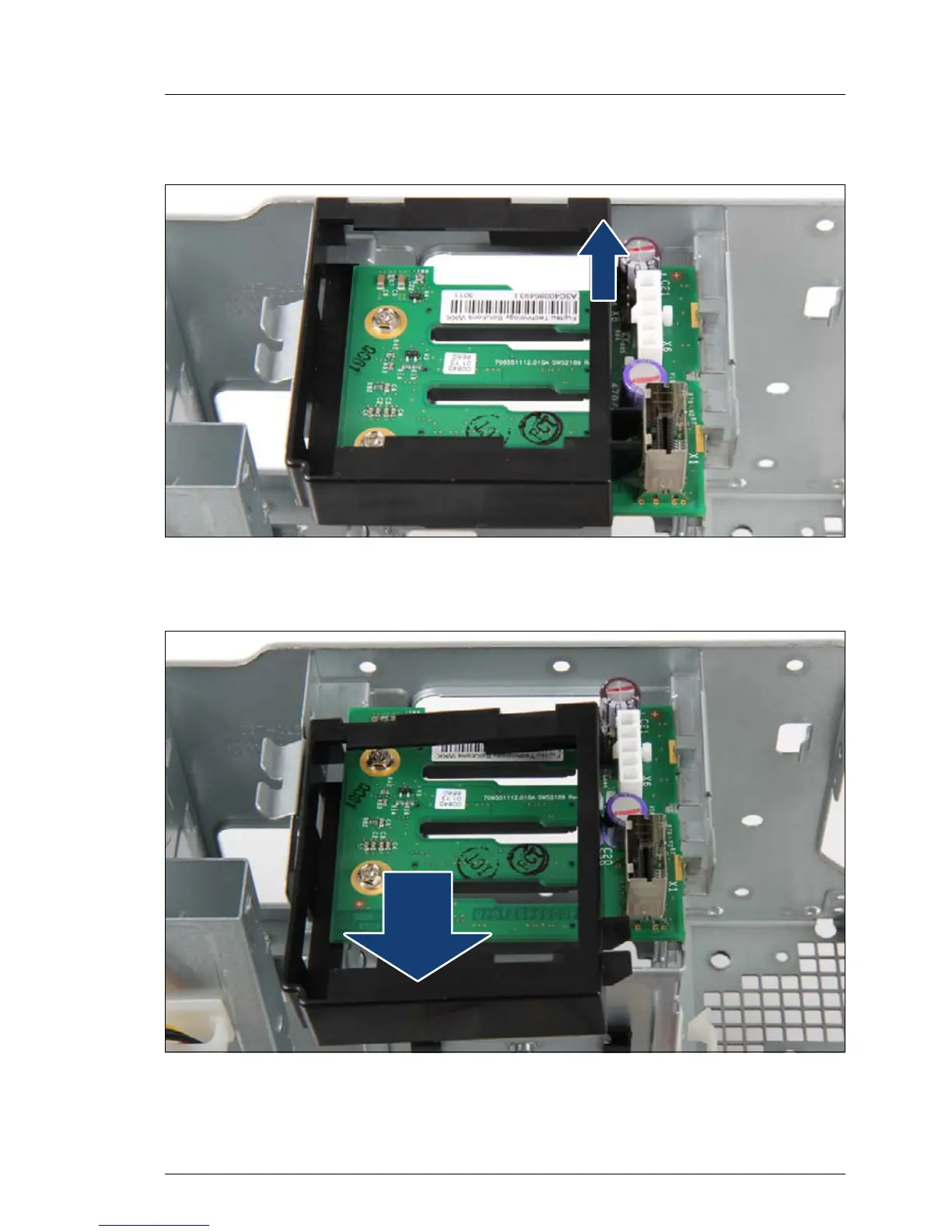

Figure 51: Lifting up the a
ir duct
Ê
Lift up the right cant of the air duct.
Figure 52: Removing
the air d
uct
Ê
Remove the air duct in direction of the arrow
.
144
146
