9.4.1.3 Network adapter D2735

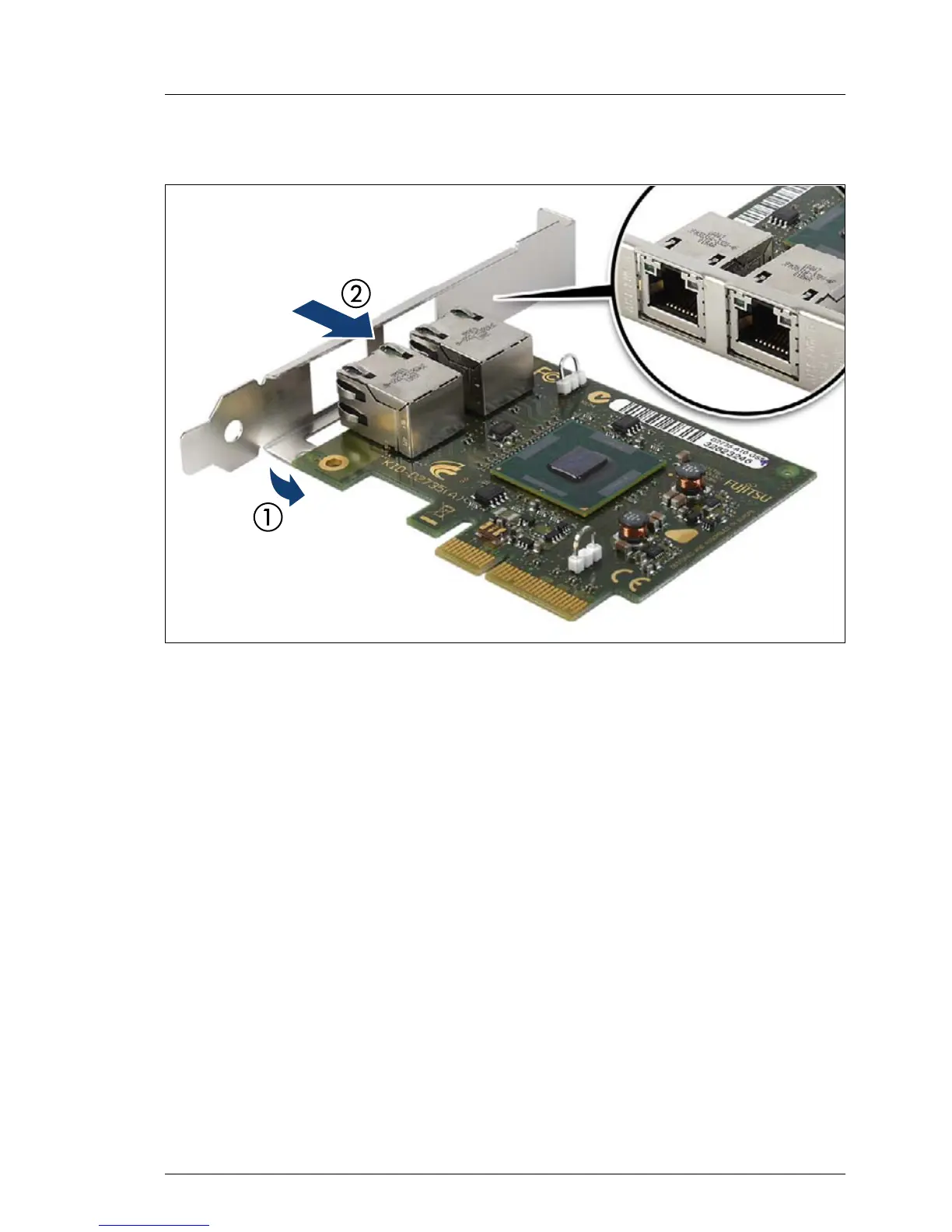

Figure 108: Network adapter D2735 - Mounting the slot bracket (A)
Ê Place the controller on the mounting tabs on the slot bracket (1).
Ê Carefully shift the slot bracket towards the controller (2) until the plug shells
engage with the cut-outs in the slot bracket connector panel (see circle).
