172 Upgrade and Maintenance Manual TX120 S3
System fan and HDD fan
8.2.2.6 Installing the HDD fan module

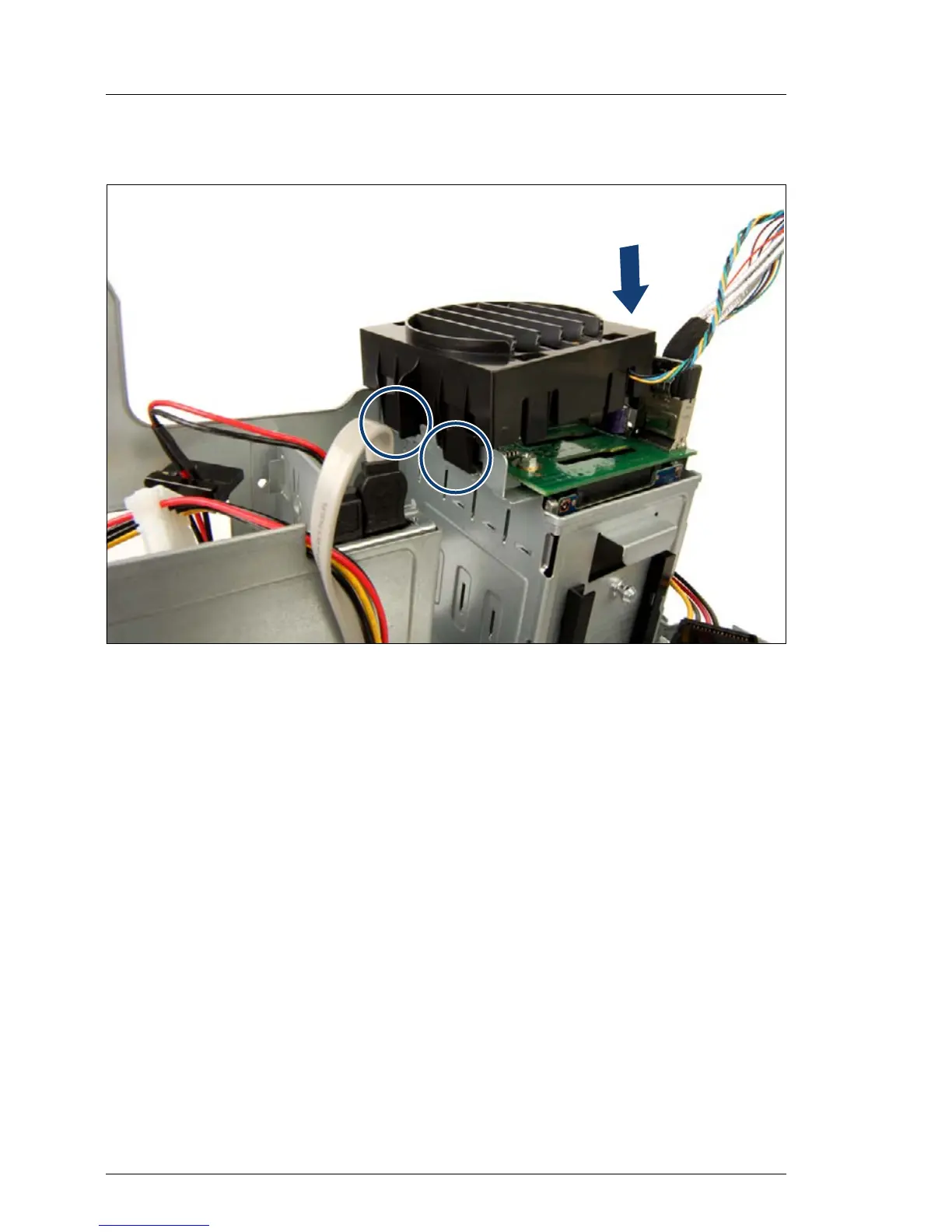

Figure 77: Inserting the HDD fan module holder
Ê Insert the hooks of the HDD fan module holder (see blue circles).
Ê Fold the fan module holder back to the front cage and press it down so that
the retaining bracket engages.
8.2.2.7 Concluding steps
Ê Close the front cage as described in section "Closing the front cage" on
page 68.
Ê Close the server cover as described in section "Closing the server" on
page 70.
Ê Reinstall all HDD / SSD modules to their original drive bays as described in
section "Installing 2.5-inch HDD / SSD modules" on page 121.
Ê Reconnect the AC power cord to the power supply unit.
Ê "Performing a fan test after replacing a defective fan" on page 108
