16.3.2 Connectors and indicators on the front panel
16.3.2.1 Front panel connectors

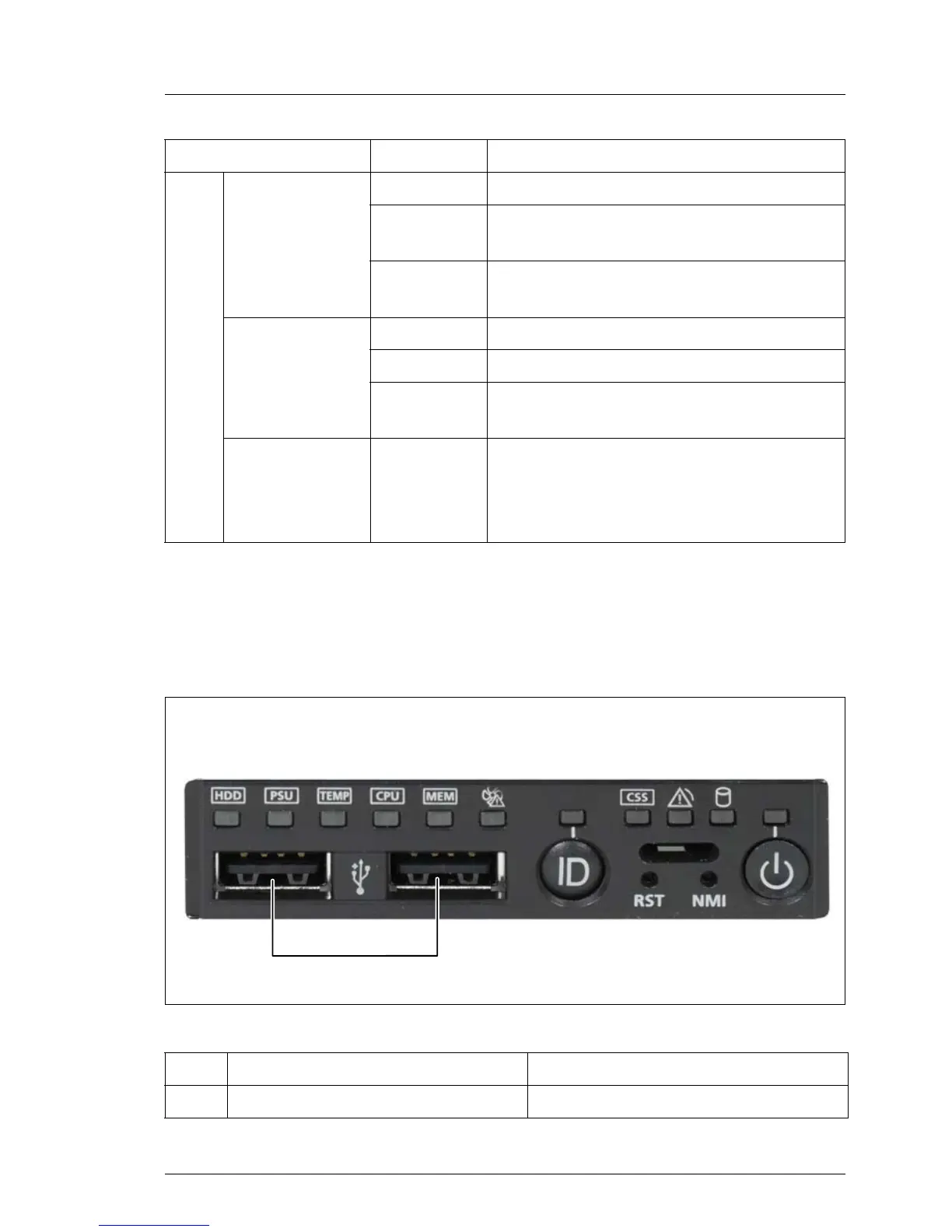

Figure 287: Front panel connectors
Indicator Status Description
1
Global error
indicator
off no critical event (non CSS component)
orange on
prefailure detected (non CSS
component)
orange
flashing
non CSS component failure
CSS indicator
off no critical event (CSS component)
yellow on prefailure detected (CSS component)
yellow
flashing
CSS component failure
Id Indicator blue on
server has been highlighted using
ServerView Operations Manager or the
ID button on the front panel for easy
identification
Pos. Component Reference
1 front USB connectors
