16.1.2 Server rear

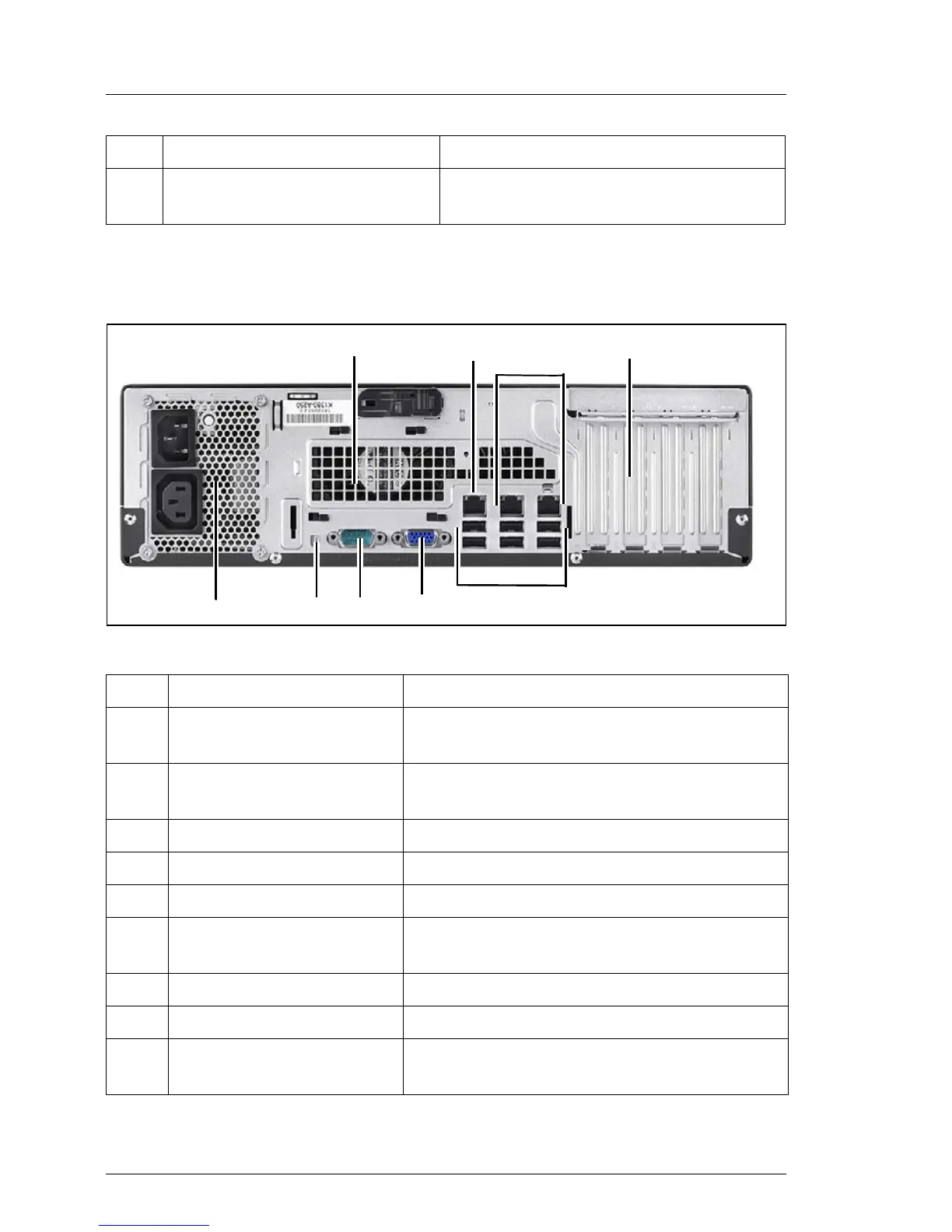

Figure 280: PRIMERGY TX120 S3 rear
7 Front panel module: optional
front LAN connector
"Replacing the front LAN connector
and board" on page 311
Pos. Component Reference
1 Standard power supply
unit
"Replacing the standard power supply unit"
on page 112
2 CSS / Global Error / ID
indicators
"I/O panel indicators" on page 433
3 Serial connector
4 VGA video connector
5 USB connectors 1-6
6 Management LAN
connector
7 Gigabit LAN connectors
8 Optional expansion card "Replacing expansion cards" on page 183
9 System fan "Replacing the system fan module" on
page 154
Pos. Component Reference
1
3
4
5
/
0
7
6
2
