388 Upgrade and Maintenance Manual TX120 S3
Cables
15.4.4 Installing the power cable

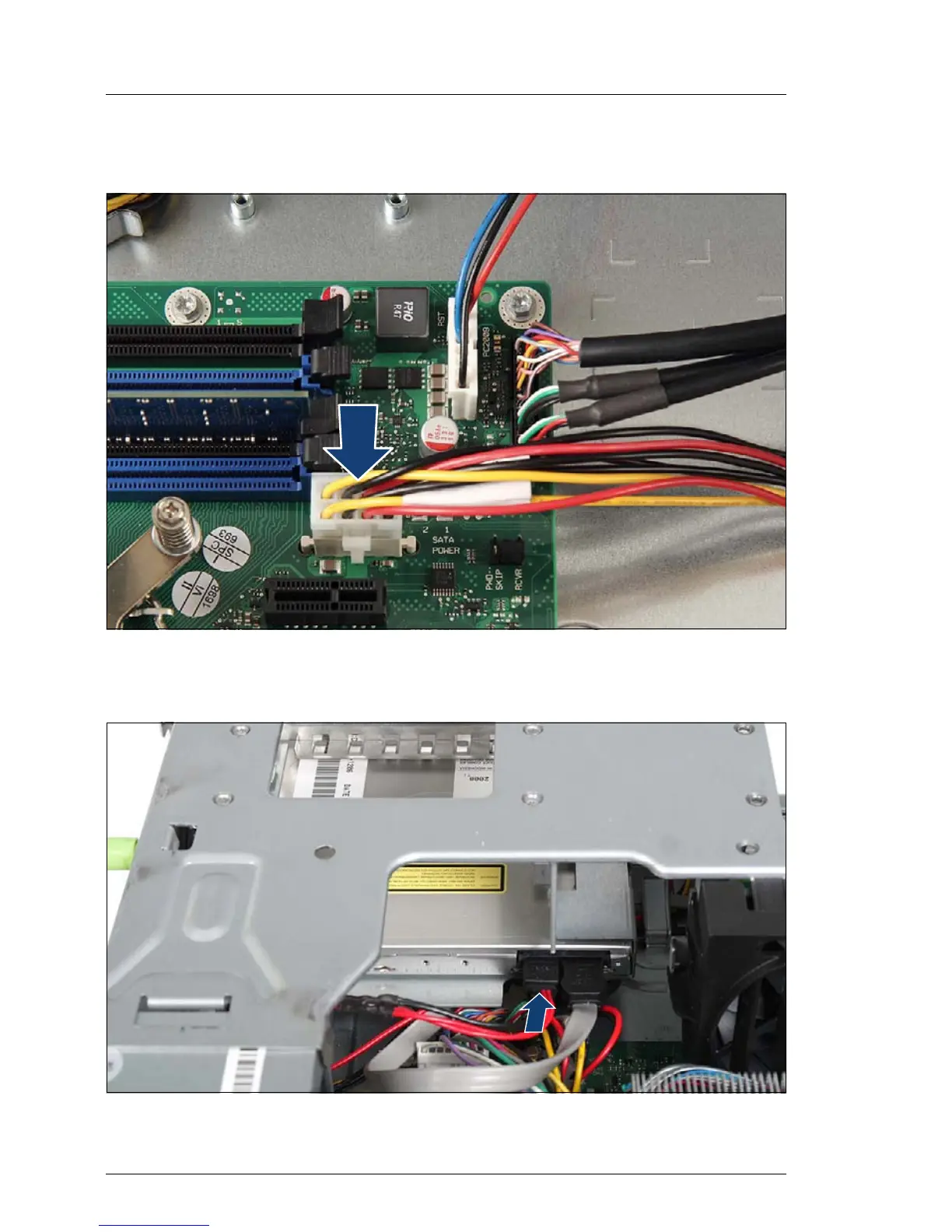

Figure 243: Connecting the power cable to the system board
Ê Connect the new power cable to system board connector SATA POWER.
Figure 244: Connecting the power cable to the ODD
