TX120 S3
Upgrade and Maintenance Manual
203
Expansion cards and backu
p units
9.3.3.3
Disconnecting the BBU cable

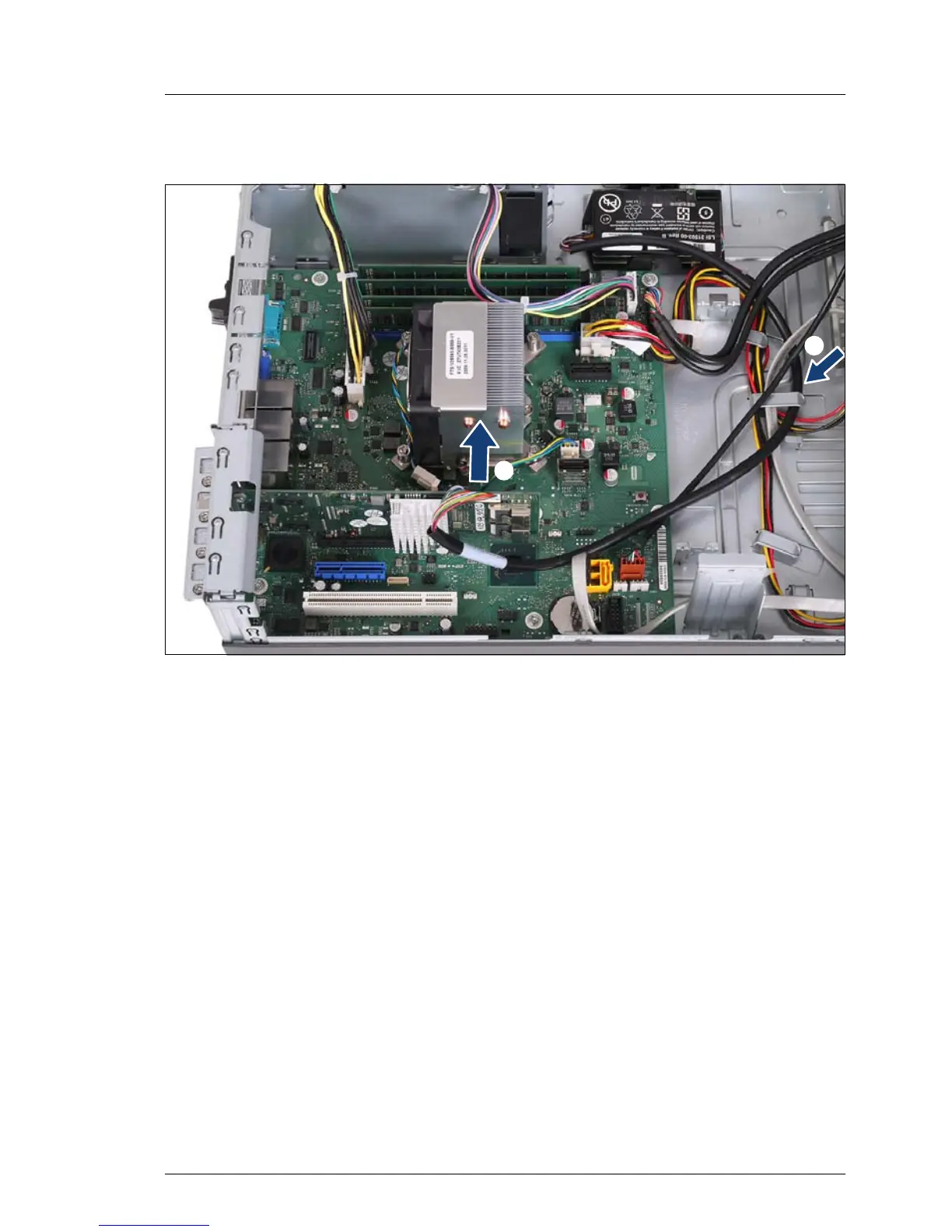

Figure 99: Disconnect
ing the BBU cable
Ê
Remove the BBU cable from the cable clamp (1).
Ê
Carefully disconnect the BBU cable from the RAID controller (2).
/
0
202
204
