TX120 S3 Upgrade and Maintenance Manual 279
Accessible drives

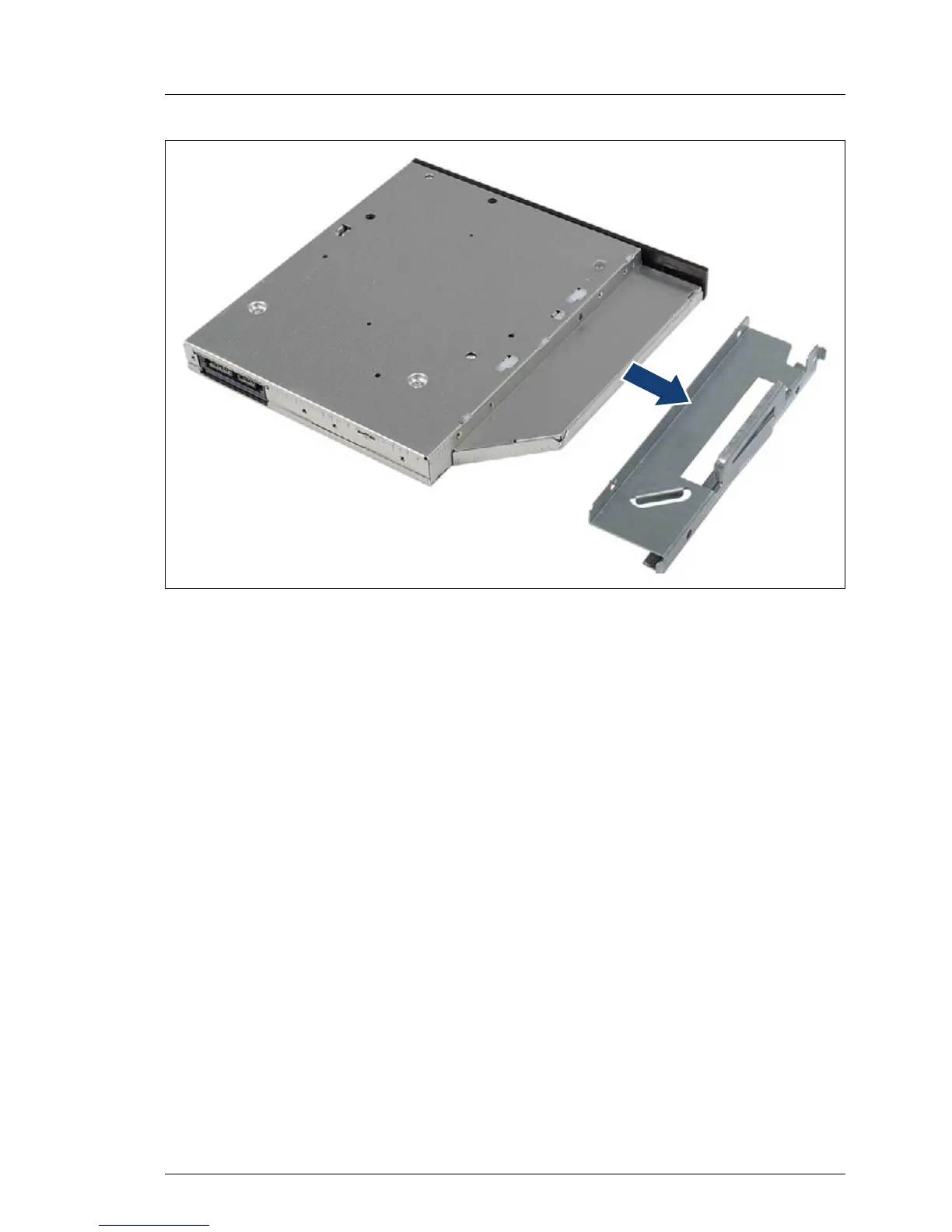

Figure 158: Removing the installation bracket
Ê Remove installation bracket.
Ê Install the replacement ODD as described in section "Installing optical disk
drive (ODD)" on page 265.
12.2.3.4 Concluding steps
Perform the following procedures to complete the task:
Ê Close the front cage as described in "Closing the front cage" on page 68.
Ê Close the server cover as described in section "Closing the server" on
page 70.
Ê Reconnect the AC power cord to the power supply unit.
Ê If BitLocker functionality is used and has been disabled before starting the
maintenance task, re-enable BitLocker as described in section "Enabling
BitLocker functionality" on page 103.
