Fujitsu PRIMERGY TX120 S3 Upgrade And Maintenance Manual

124 Upgrade and Maintenance Manual TX120 S3
Hard disk drives / solid state drives

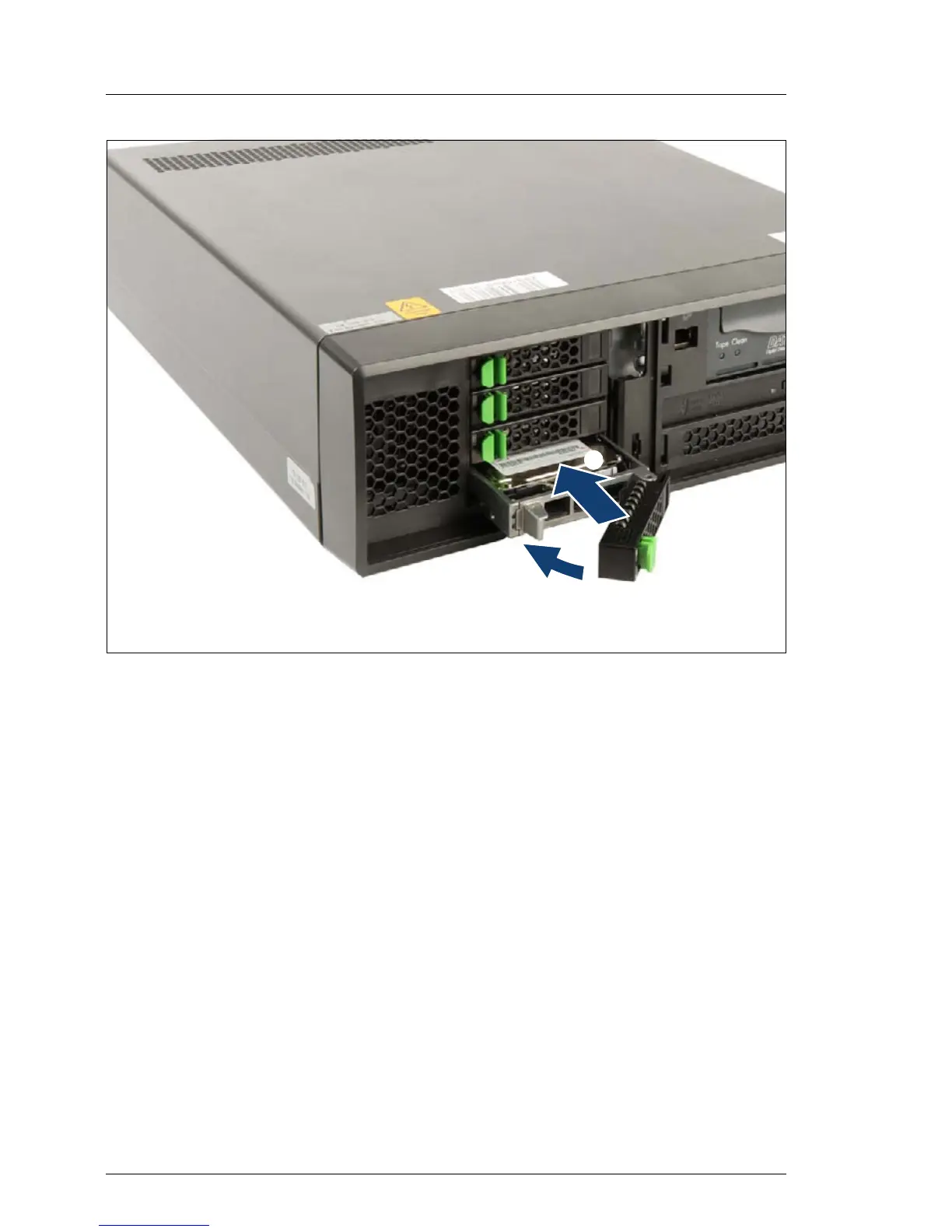

Figure 38: Inserting the 2.5-inch HDD / SSD module
Ê Insert the HDD module into a drive bay and carefully push back as far as it
will go (1).
Ê Close the locking lever to lock the hard disk drive in place (2).
7.2.2.5 Concluding steps
Perform the following procedures to complete the task:
Ê Install the hard disk drive cover as described in section "Mounting the drive
cover" on page 71.
/
0

Fujitsu PRIMERGY TX120 S3 Specifications

General

Brand	Fujitsu
Model	PRIMERGY TX120 S3
Category	Server
Language	English
