162
Upgrade and Mai
ntenance Manual
TX120
S3
System fan and HD
D fan
8.2.1.3
Removing the HDD fan mod
ule

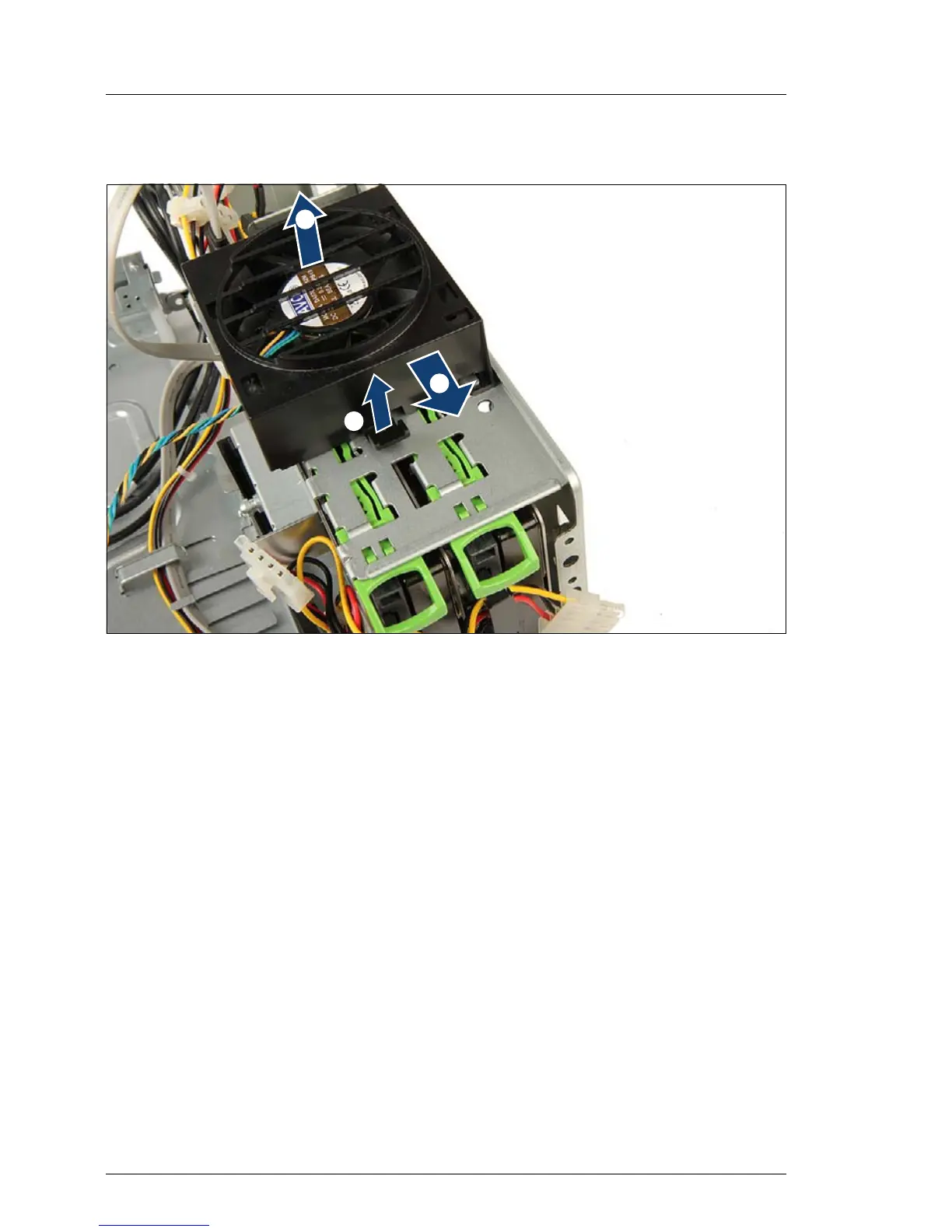

Figure 67: Removing the HDD f
an module
Ê
Pull the lock
ing le
ver (1
).
Ê
Push the fan module in the
direction of arrow (2) to di
sengage the ret
aining
brackets on the server rear
.
Ê
Lift the HDD fan module out of the chassis (3).
/
0
1
161
163
