160 Upgrade and Maintenance Manual TX120 S3
System fan and HDD fan

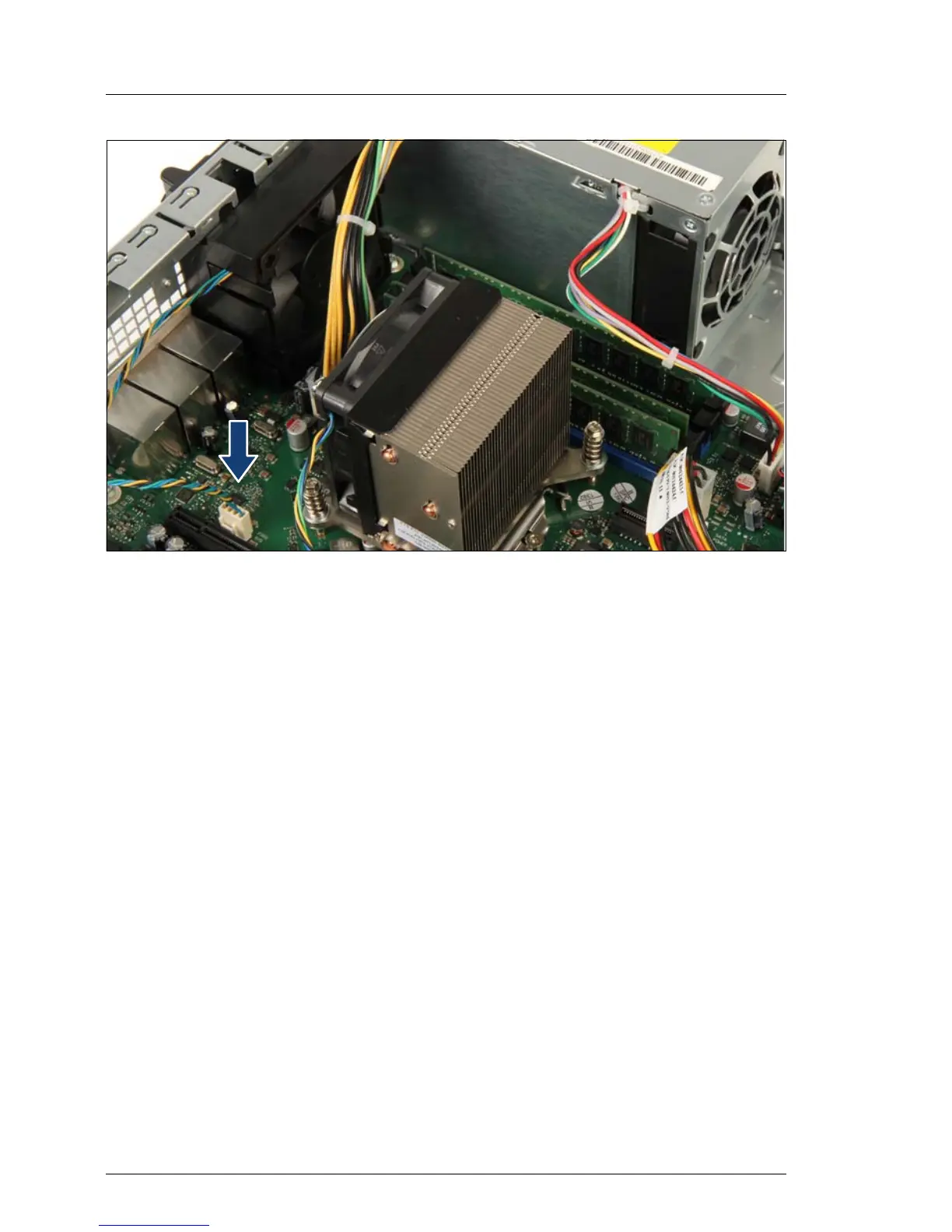

Figure 66: Connecting the system fan cable
Ê Connect the fan cable to system board connector FAN1 SYS.
8.1.7 Concluding steps
Ê Close the server cover as described in section "Closing the server" on
page 70.
Ê Reconnect the AC power cord to the power supply unit.
Ê "Performing a fan test after replacing a defective fan" on page 108
