308 Upgrade and Maintenance Manual TX120 S3
Front panel and LAN connector
13.2.2.3 Removing the front LAN connector

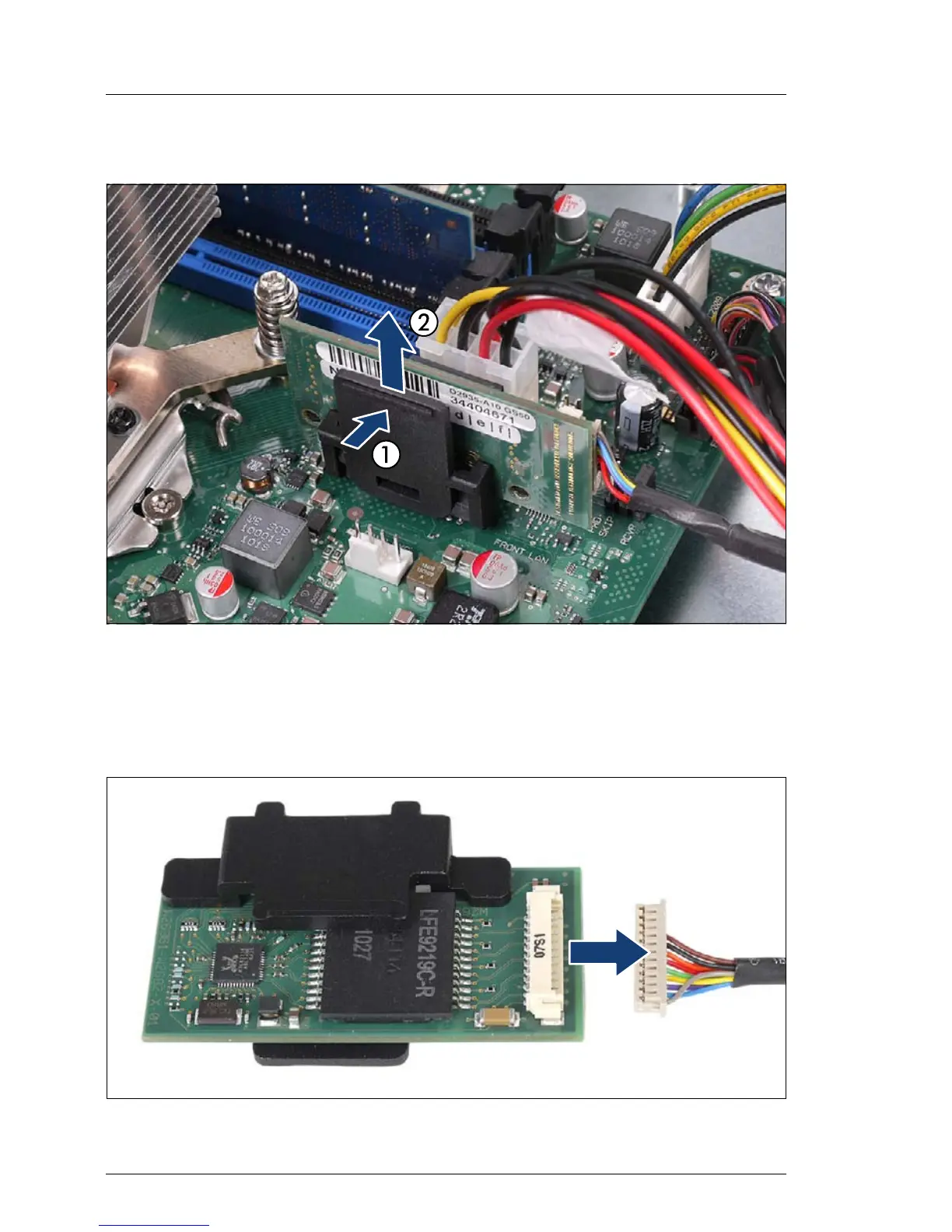

Figure 182: Disconnecting the front LAN board
Ê Disconnect the front LAN board from the system board:
Press in on the locking latch on the front LAN board holder (1) and pull the
front LAN board out of its socket (2).
Figure 183: Disconnecting the front LAN cable
