Fujitsu PRIMERGY TX120 S3 - Network Adapter D2755

TX120 S3 Upgrade and Maintenance Manual 221
Expansion cards and backup units
9.4.1.5 Network adapter D2755

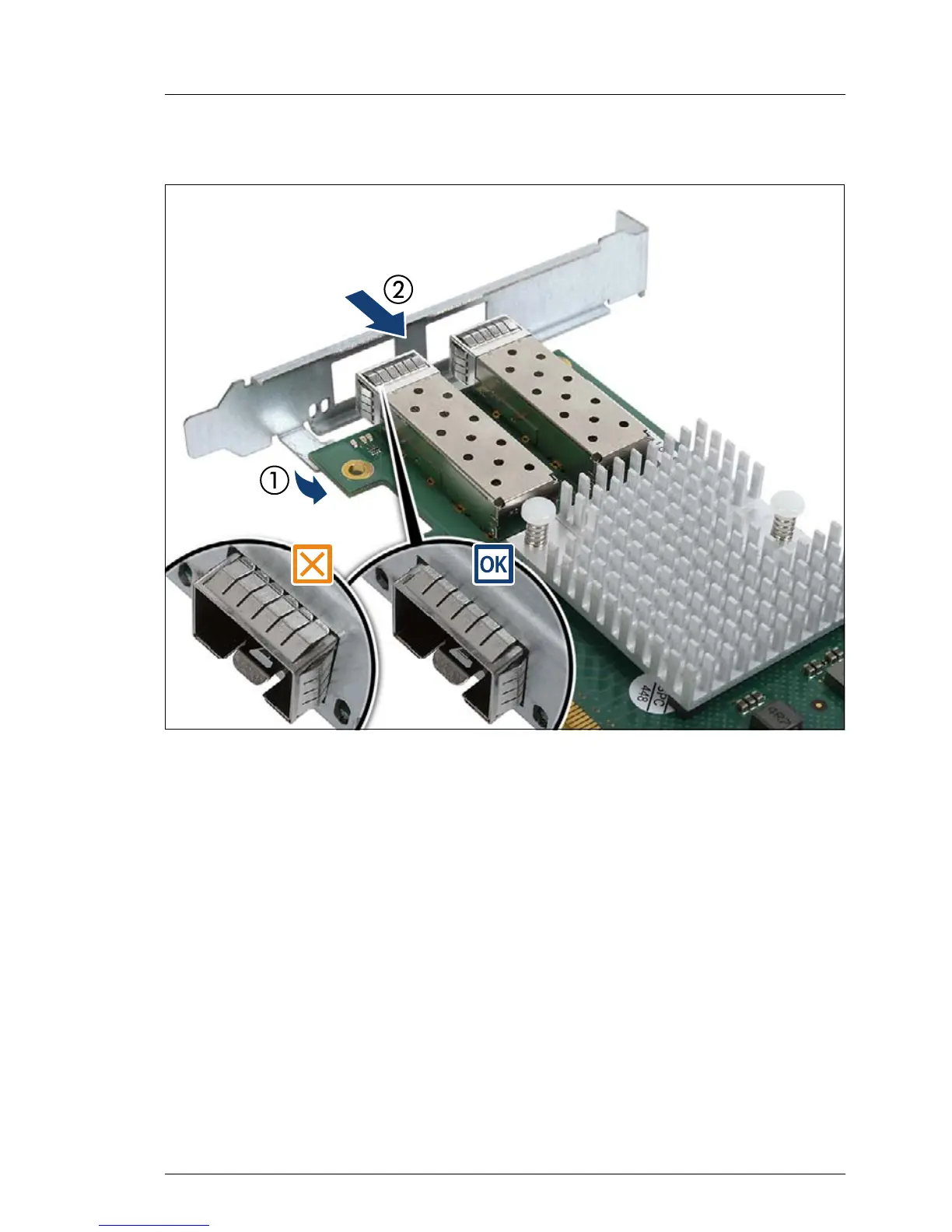

Figure 114: Network adapter D2755 - Mounting the slot bracket (A)
Ê Place the controller on the mounting tabs on the slot bracket (1).
Ê Carefully shift the slot bracket towards the controller until the plug shells
engage with the cut-outs in the slot bracket connector panel (2).
Ê Ensure that the ESD springs on the plug shells properly engage with the slot
bracket as shown (see circles).
