TX120 S3
Upgrade and Maintenance Manual
301
Front pan
el and LAN conn
ecto
r
13.2.1.3
Inst
alling the front LAN co
nnector

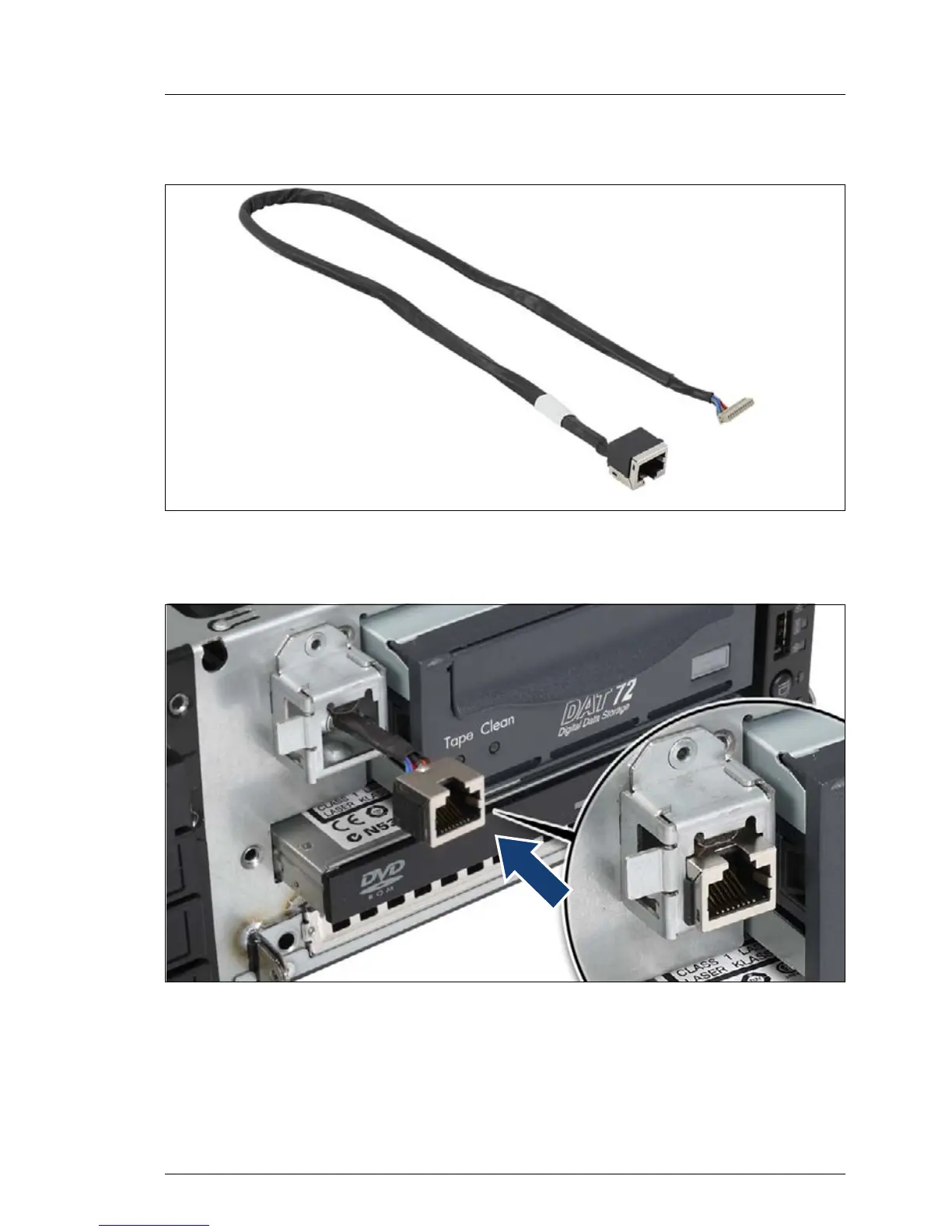

Figure 173: Front LA
N cable
Front LAN cable T26139-Y4025-V1
Figure 174: Mount
ing the front LAN
connector
Ê
Thr
ead the front LAN cable (T26139-Y4025-V1) through the recess in the
chassis front as shown.
Ê
Carefully snap the front LAN cable connector into the front LAN holder
.
300
