Fujitsu PRIMERGY TX120 S3 - Inch HDD; SSD Model; Removing SAS; SATA Backplane Cable

398 Upgrade and Maintenance Manual TX120 S3
Cables
15.6.3 2.5-inch HDD / SSD model

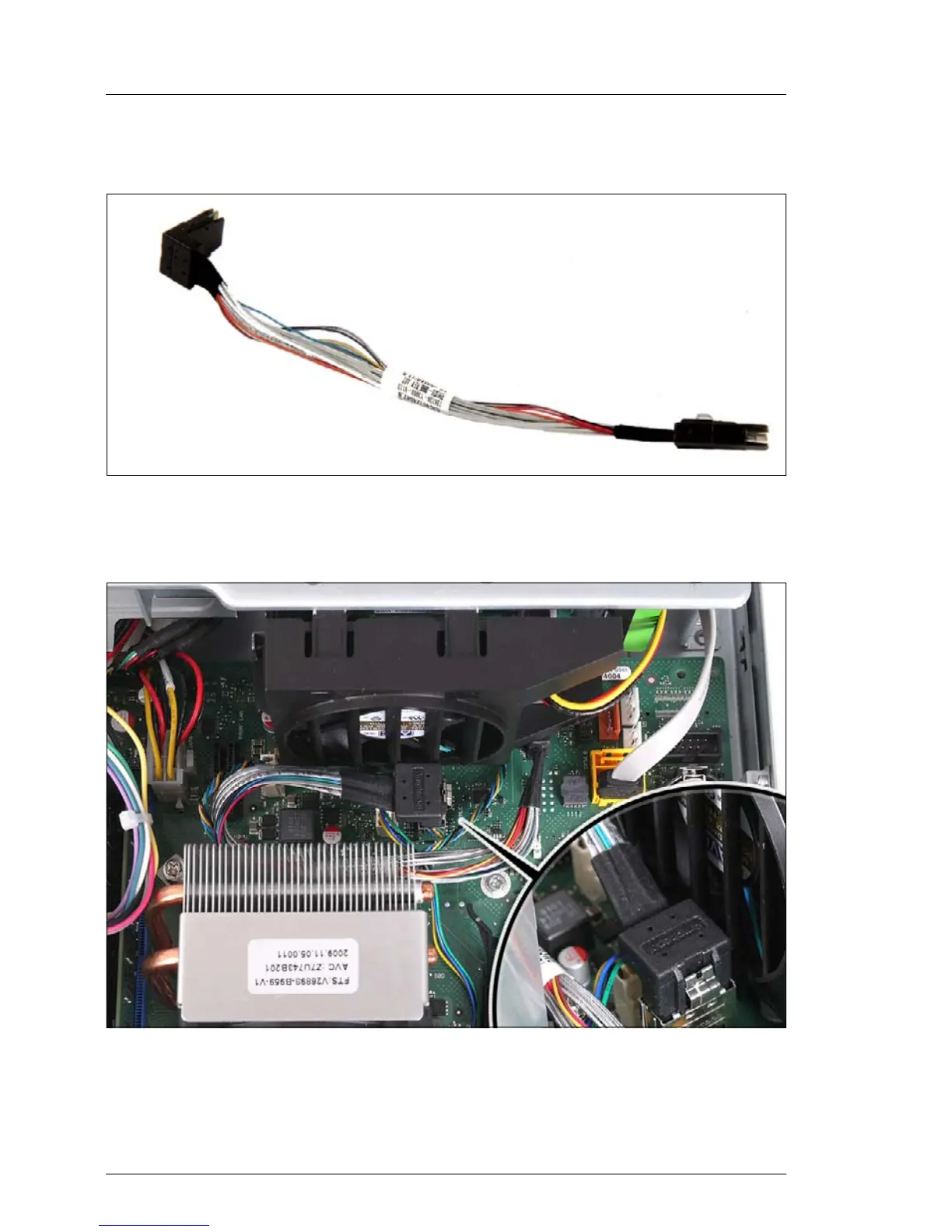

Figure 255: SAS / SATA backplane cable T26139-Y3963-V113
15.6.3.1 Removing SAS / SATA backplane cable
Figure 256: Removing the SAS / SATA cables (2.5-inch HDD model) (A)
Ê Disconnect the SAS / SATA cable from the system board connector SATA
MLC1.
