Fujitsu PRIMERGY TX120 S3 Upgrade And Maintenance Manual

156 Upgrade and Maintenance Manual TX120 S3
System fan and HDD fan
Ê Pull the locking lever (1).
Ê Push the fan module in the direction of arrow (2) to disengage the retaining
brackets on the server rear.
Ê Lift the fan module out of the chassis (3).
8.1.4 Removing the fan from the holder

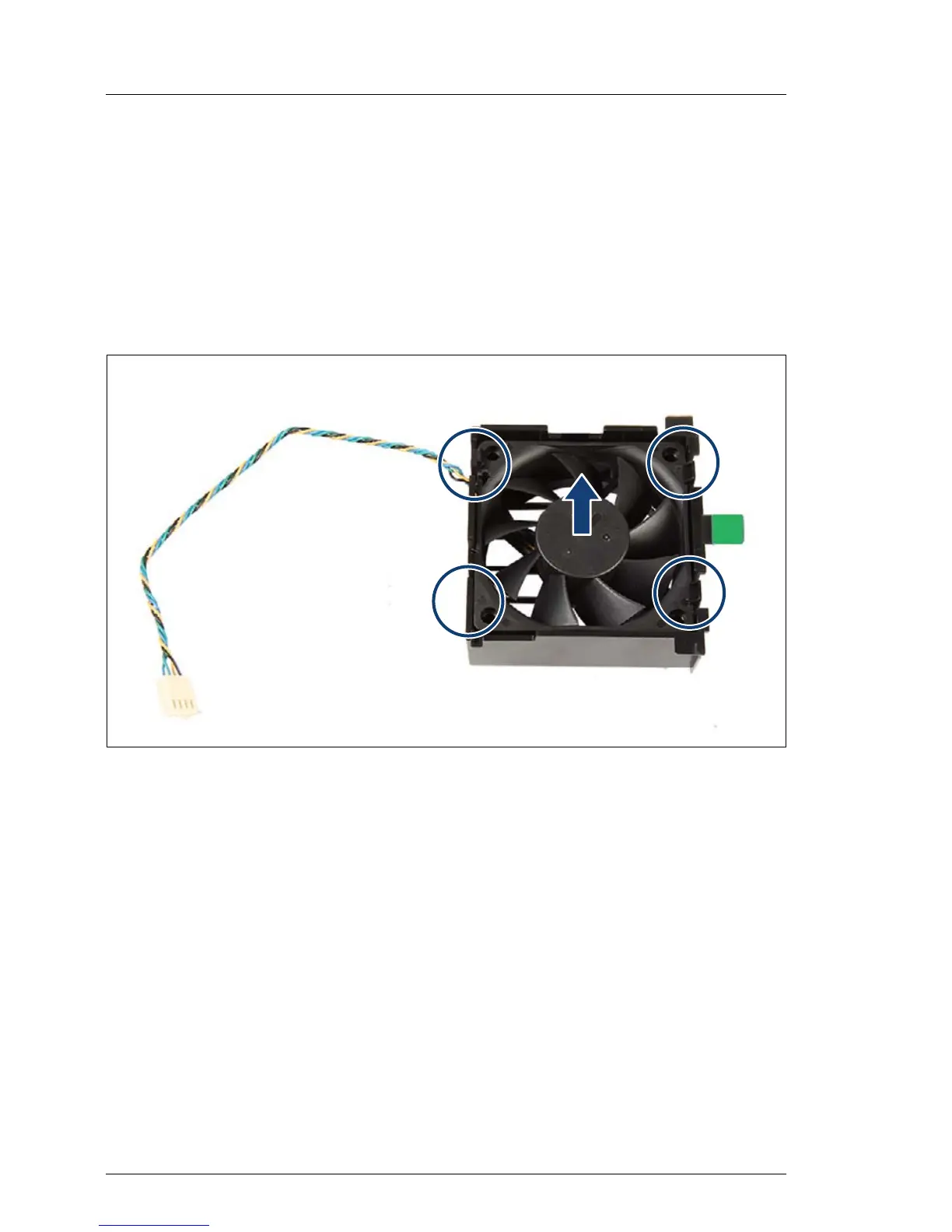

Figure 62: Removing the fan from the holder
Ê Unlock the fan (see circles).
Ê Remove the fan from the holder (see arrow).
