224 Upgrade and Maintenance Manual TX120 S3
Expansion cards and backup units

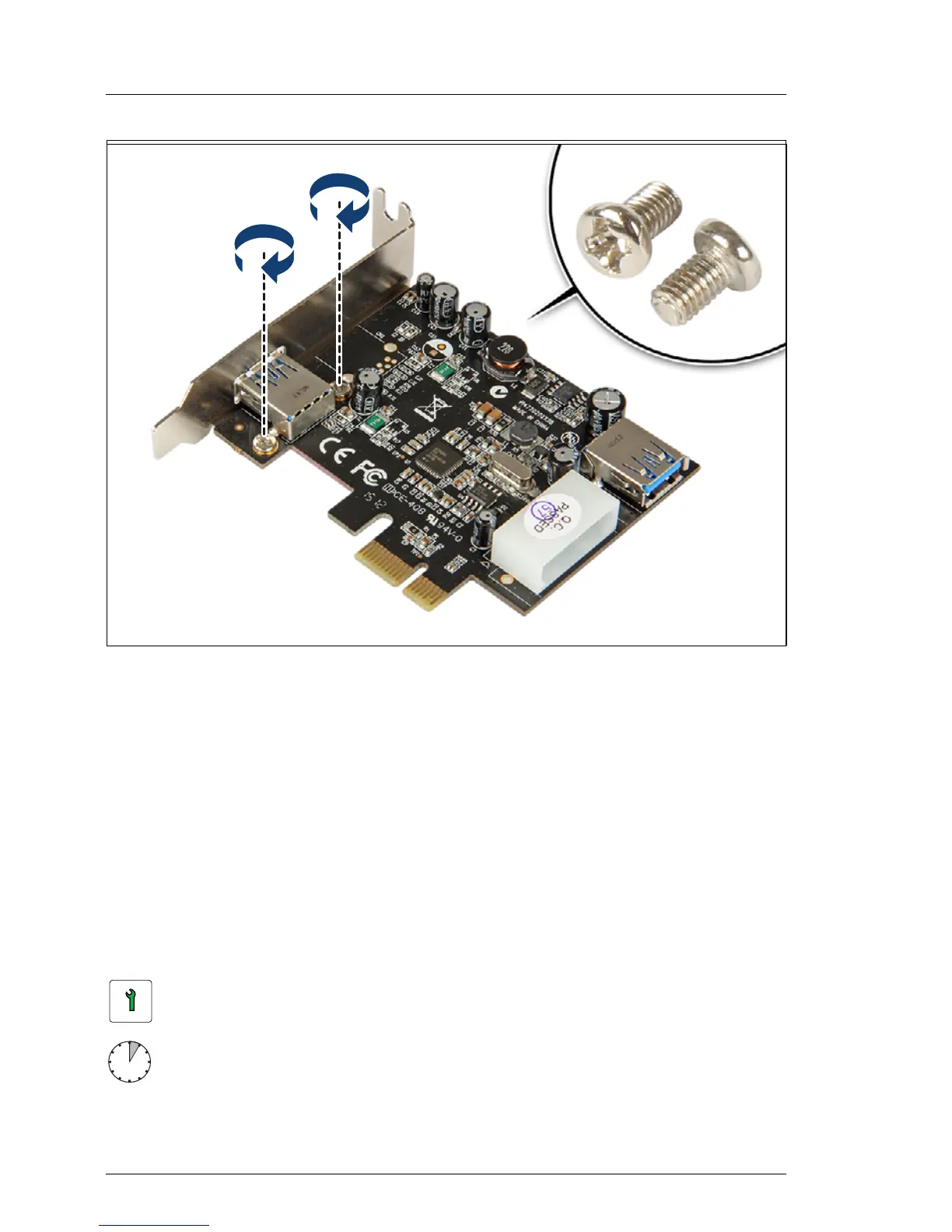

Figure 118: Mounting the PCI slot bracket (B)
Ê Secure the slot bracket to the controller with the two M3 x 5 mm screws
contained in the expansion card kit.
9.4.2 Handling SFP+ transceiver modules
For Fiber Channel over Ethernet (FCoE) configurations, the Ethernet server
adapter is equipped with one or two SFP+ (small form-factor pluggable)
transceiver modules.
9.4.2.1 Installing SFP+ transceiver modules
Customer Replaceable Units (CRU)
Average task duration: 5 minutes
