Fujitsu PRIMERGY TX120 S3 - Removing the Backup Drive Filler Cover

TX120 S3 Upgrade and Maintenance Manual 281
Accessible drives
12.3.1.3 Removing the backup drive filler cover

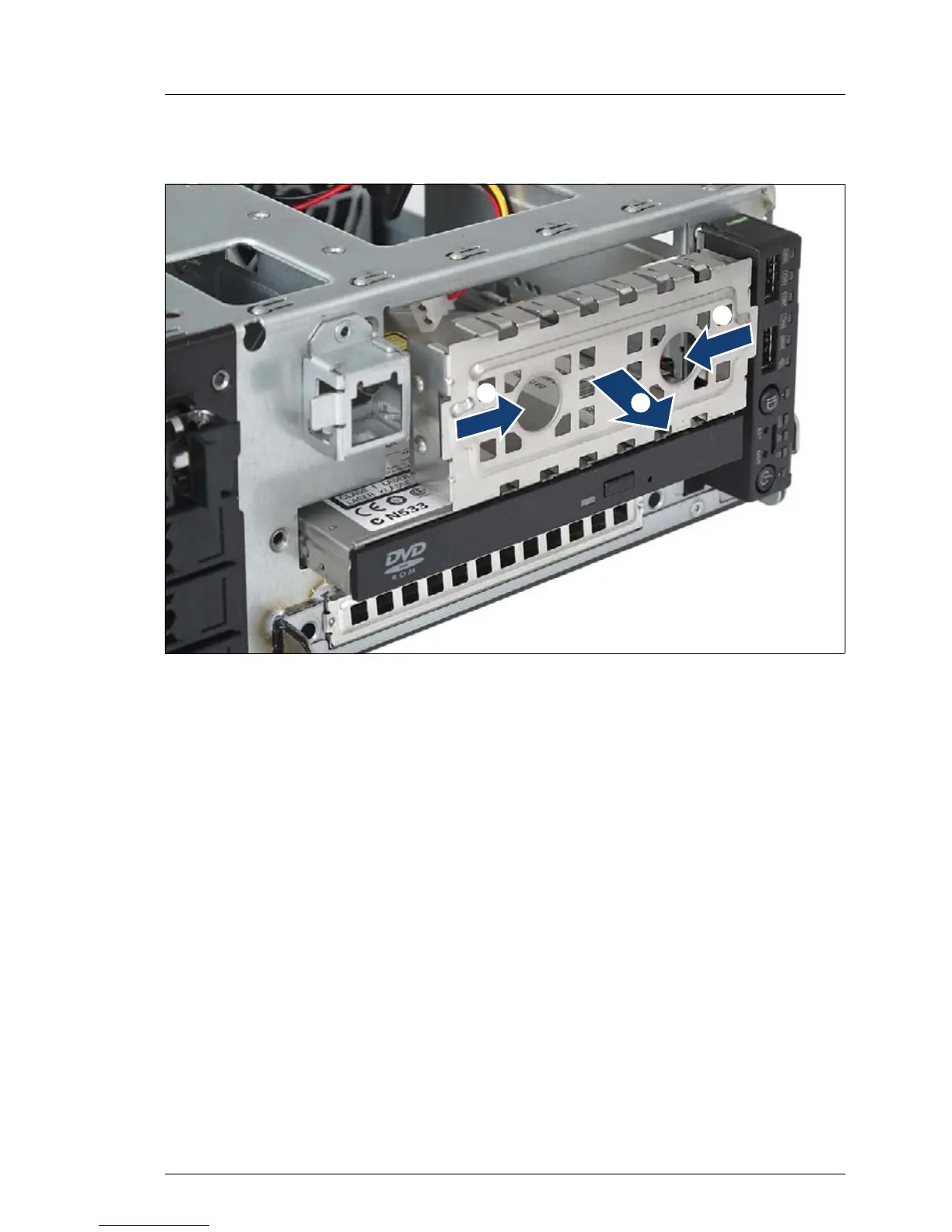

Figure 159: Removing the backup drive filler cover
Ê Hold the backup drive filler cover by its two handle recesses (1) und pull it
out of the installation bay (2).
V CAUTION!
Save the backup drive filler cover for future use.
Always replace dummy modules into unused drive bays to comply with
applicable EMC regulations and satisfy cooling requirements.
/
/
