326
Upgrade and Mai
ntenance Manual
TX120
S3
System board and compo
nent
s
14.2.3.3
Removing the UFM

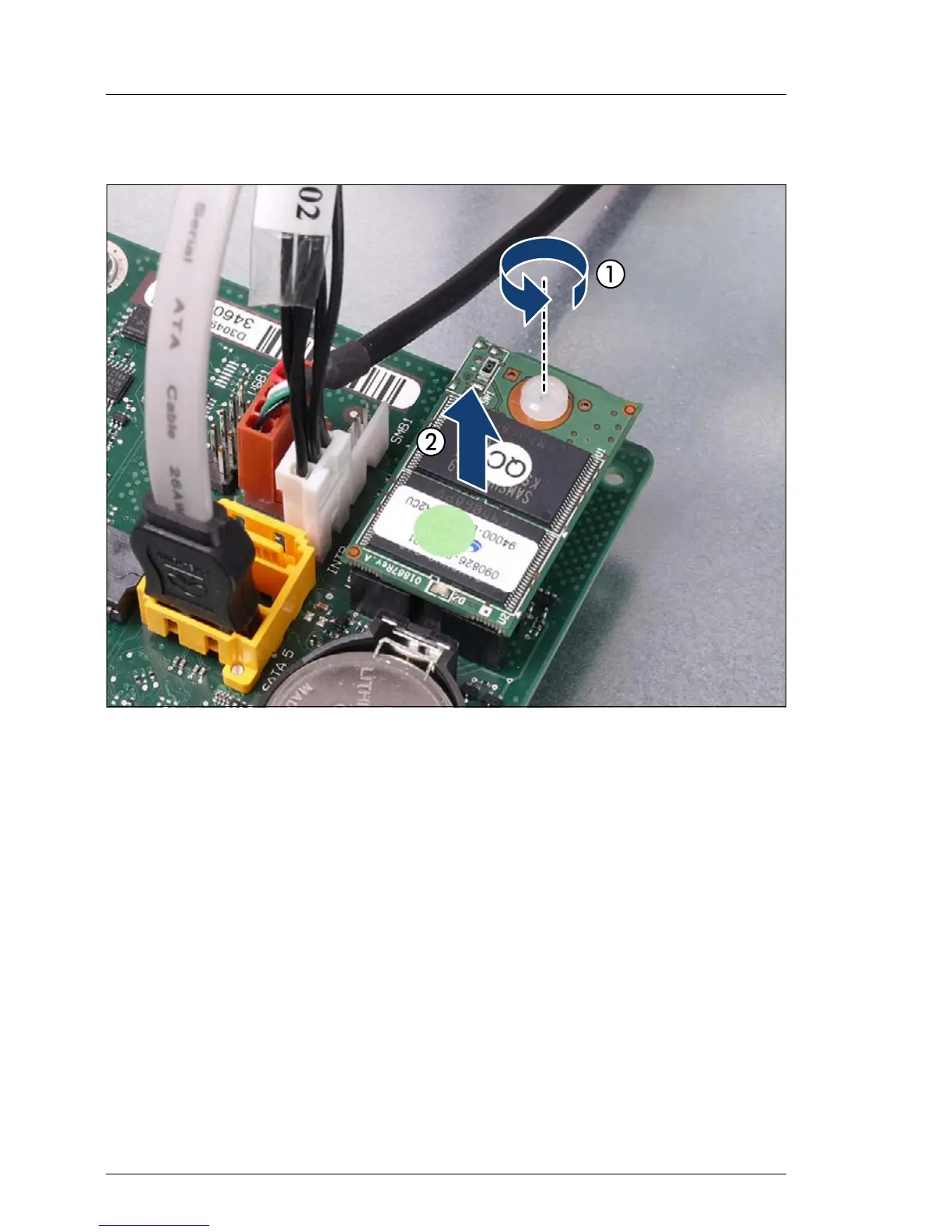

Figure 194: Removing the UFM board (A)
Ê
Remove the nylon screw on the defective UFM board (1).
Ê
Disconnect and remove the defective UFM boar
d (2).
