Fujitsu PRIMERGY TX120 S3 - Preparing the FBU

TX120 S3 Upgrade and Maintenance Manual 199
Expansion cards and backup units
9.3.2.4 Preparing the FBU

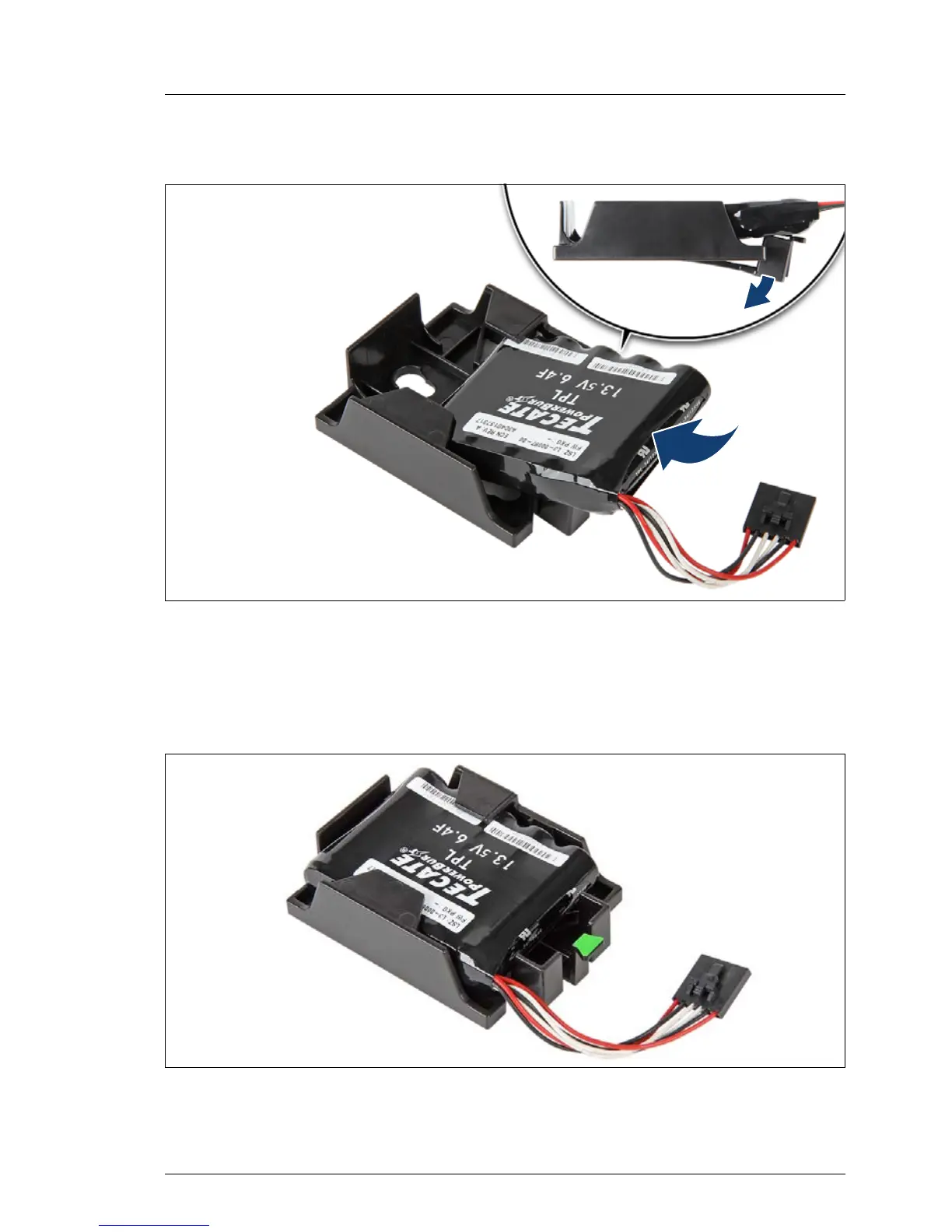

Figure 95: Installing the FBU in the FBU holder (A)
Ê At a slight angle, fit the FBU under both retaining brackets of the FBU holder
as shown.
Ê Push in the FBU until it locks in place.
Figure 96: Installing the FBU in the FBU holder (B)
Ê Ensure that the FBU is properly seated in the FBU holder as shown.
