126 Upgrade and Maintenance Manual TX120 S3
Hard disk drives / solid state drives
7.2.3.3 Removing a 2.5-inch HDD / SSD module

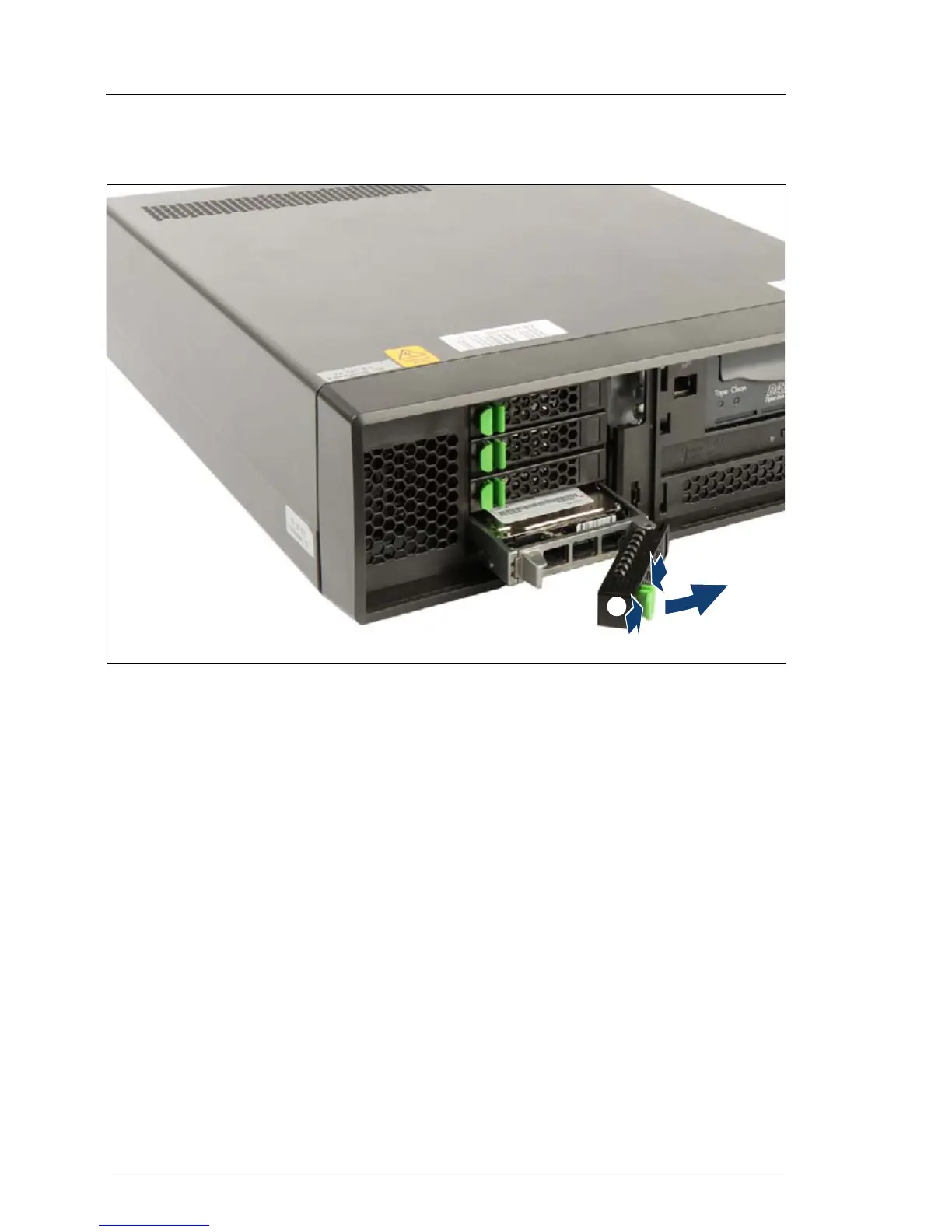

Figure 39: Disconnecting a 2.5-inch HDD / SSD module
Ê Pinch the green locking clips (1) and fully open the locking lever (2).
I Thereby, the HDD / SSD module is pushed out of its drive bay by
about 1 cm and disconnected from the SAS / SATA backplane.
Ê Wait about 30 seconds to allow the hard disk drive to spin down.
I This is not necessary when removing a solid state drive.
/
