394 Upgrade and Maintenance Manual TX120 S3
Cables
15.5.1 Required tools
● Preliminary and concluding steps: tool-less
● Replacing the ODD SATA cable: tool-less
15.5.2 Preliminary steps
Before replacing the power cable, perform the following steps:
Ê Locate the defective server as described in section "Locating the defective
server" on page 50.
Ê Shut down the server as described in section "Shutting down the server" on
page 58.
Ê Remove the AC power cord from the cable tie and disconnect it from the
system as described in section "Disconnecting power cords" on page 59.
Ê Open the server cover as described in section "Opening the server" on
page 61 (rack server).
15.5.3 Removing the ODD SATA cable

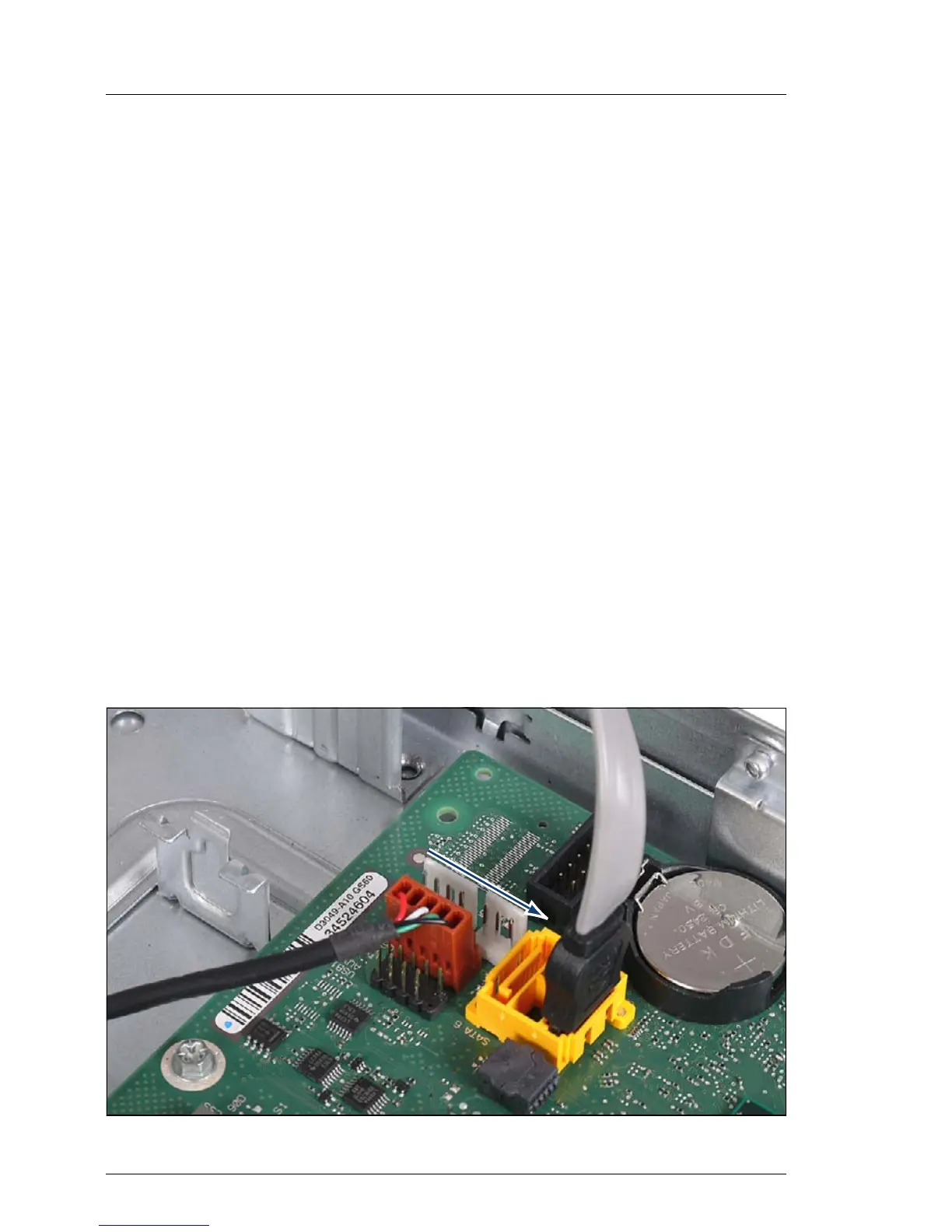

Figure 251: Disconnecting the ODD SATA cable (A)
