TX120 S3 Upgrade and Maintenance Manual 287
Accessible drives
Ê Shut down the server as described in section "Shutting down the server" on
page 58.
Ê Disconnect the AC power cord from the system.
Ê Remove the server cover as described in section "Opening the server" on
page 61.
12.3.2.3 Removing the backup drive

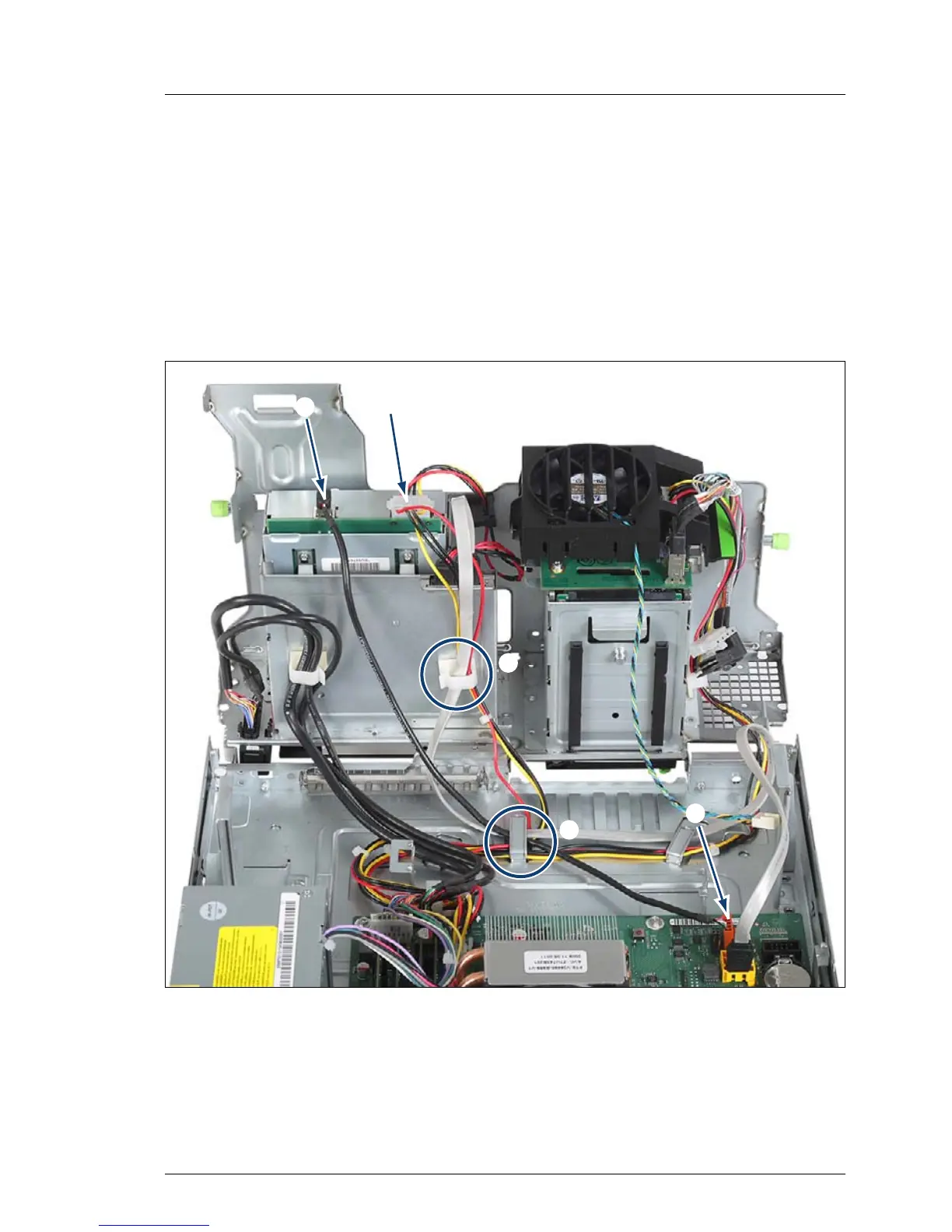

Figure 164: Disconnecting cables from the backup drive
Ê Disconnect all cables from the backup drive.
1 SATA power cable T26139-Y4012-V501 connector P2 (1)
2 USB cable Y3973-V91 Type B connector (2)
/
0
/
0
1
