TX120 S3 Upgrade and Maintenance Manual 285
Accessible drives
– A USB 3.0 RDX drive may be connected to an onboard USB 2.0
connector with limited performance.
– For full performance, connect the USB 3.0 RDX drive to a USB 3.0
interface card by USB 3.0 cable.
– The USB 3.0 cable cannot be connected to a USB 2.0 RDX drive.
Ê Run the power cable through the right cable clamp on the accessible drive
cage as shown (circle 1).
Ê Run the power cable through the cable clamp on the bottom ofthe server as
shown (circle 2).
12.3.1.5 Removing the backup drive cover
Ê Open the drive cover of the side / top coveras described in section
"Removing the drive cover" on page 64.

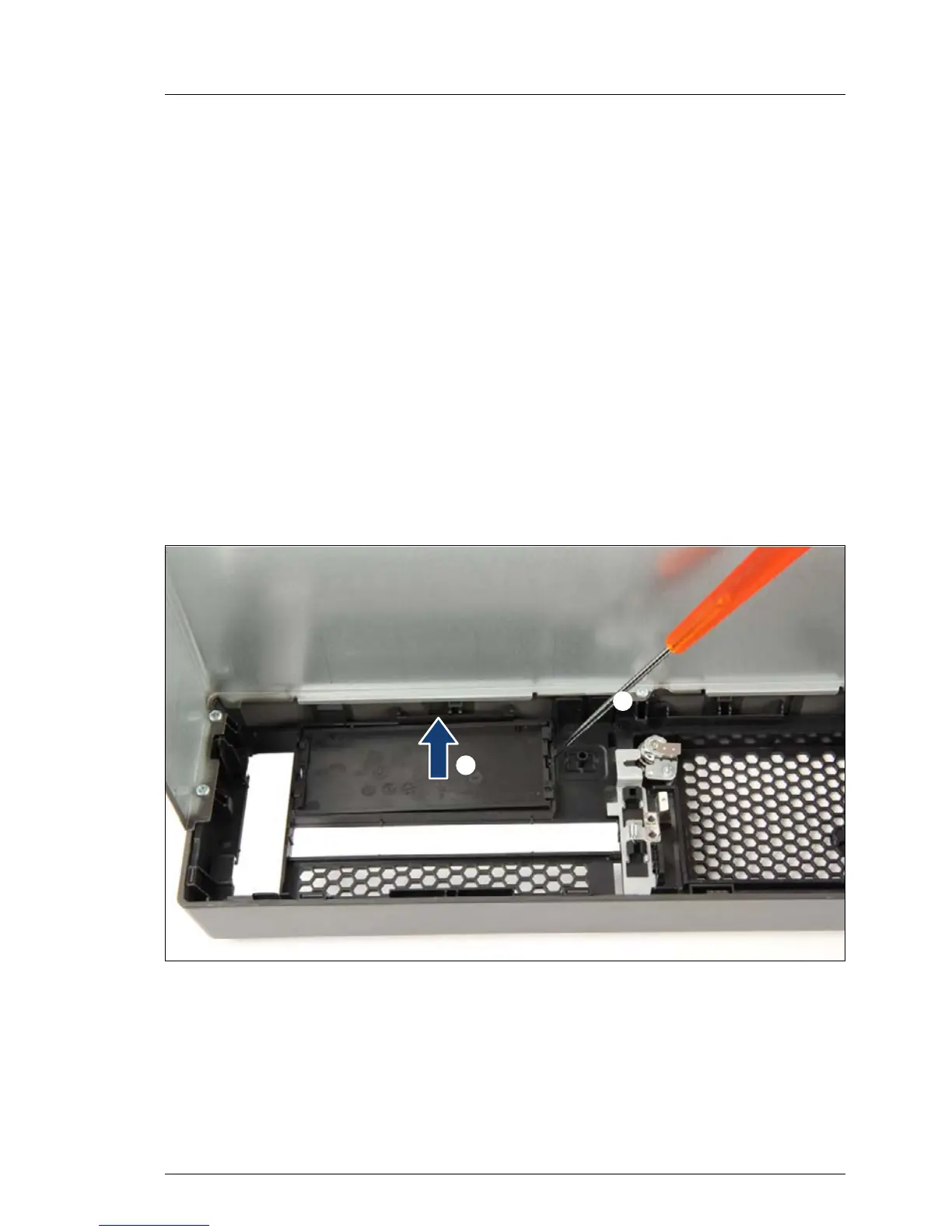

Figure 163: Removing the dummy cover
Ê Disengage the hooks of the dummy cover on the internal side of the
side / top cover (1).
Ê Remove the dummy cover outward from the front of the side / top cover in
the direction of the arrow (2).
/
