TX120 S3
Upgrade and Maintenance Manual
411
Cables
15.9
Replacing BBU cables

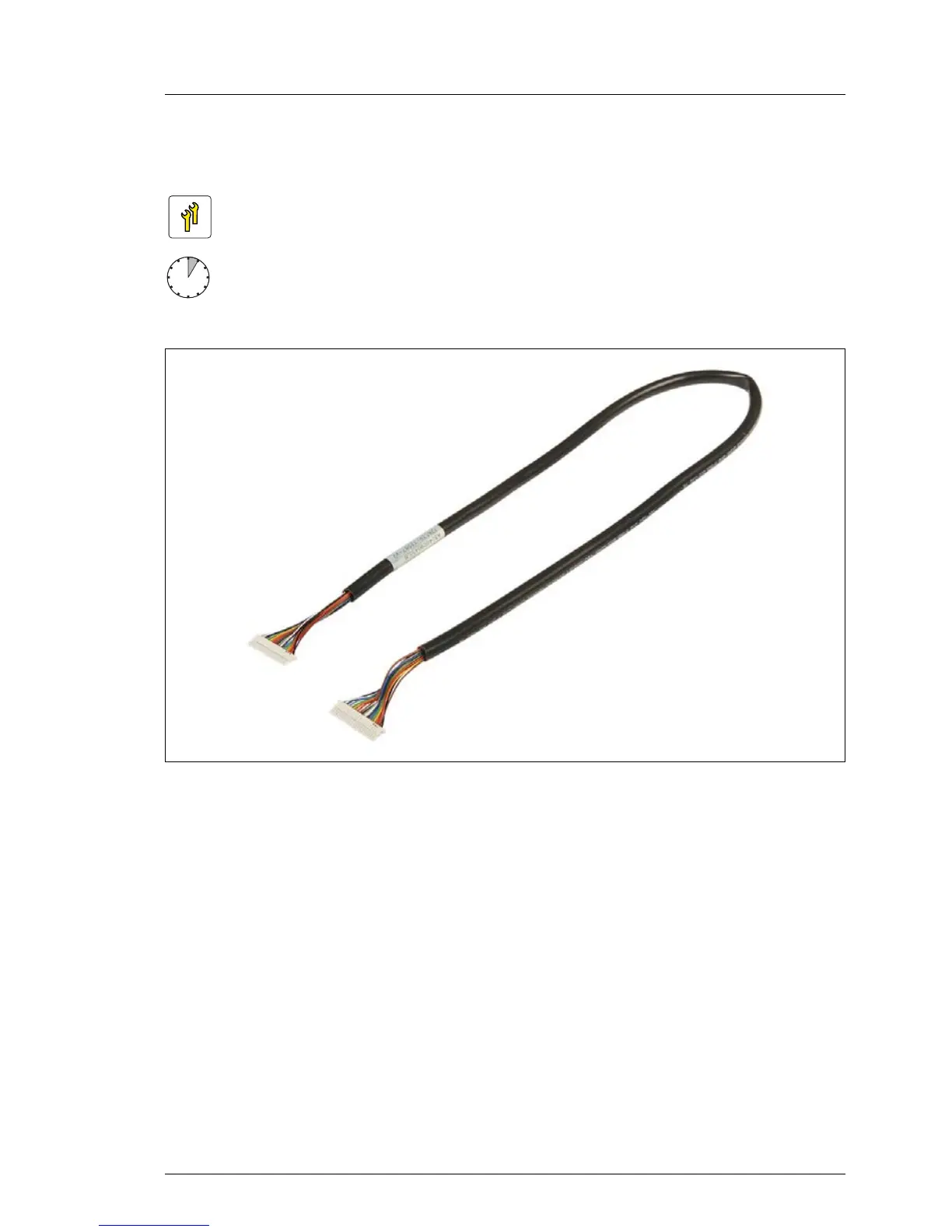

Figure 268: BBU
cable T26139-Y3987-
V2
15.9.1
Required too
ls
●
Preliminary and concludi
ng steps: tool-les
s
●
Replacing the BBU cable: tool-les
s
Upgrade and Repair Unit
s (URU)
A
verage task duration: 5 minutes
410
