416 Upgrade and Maintenance Manual TX120 S3
Cables
15.9.4 Installing the BBU cable

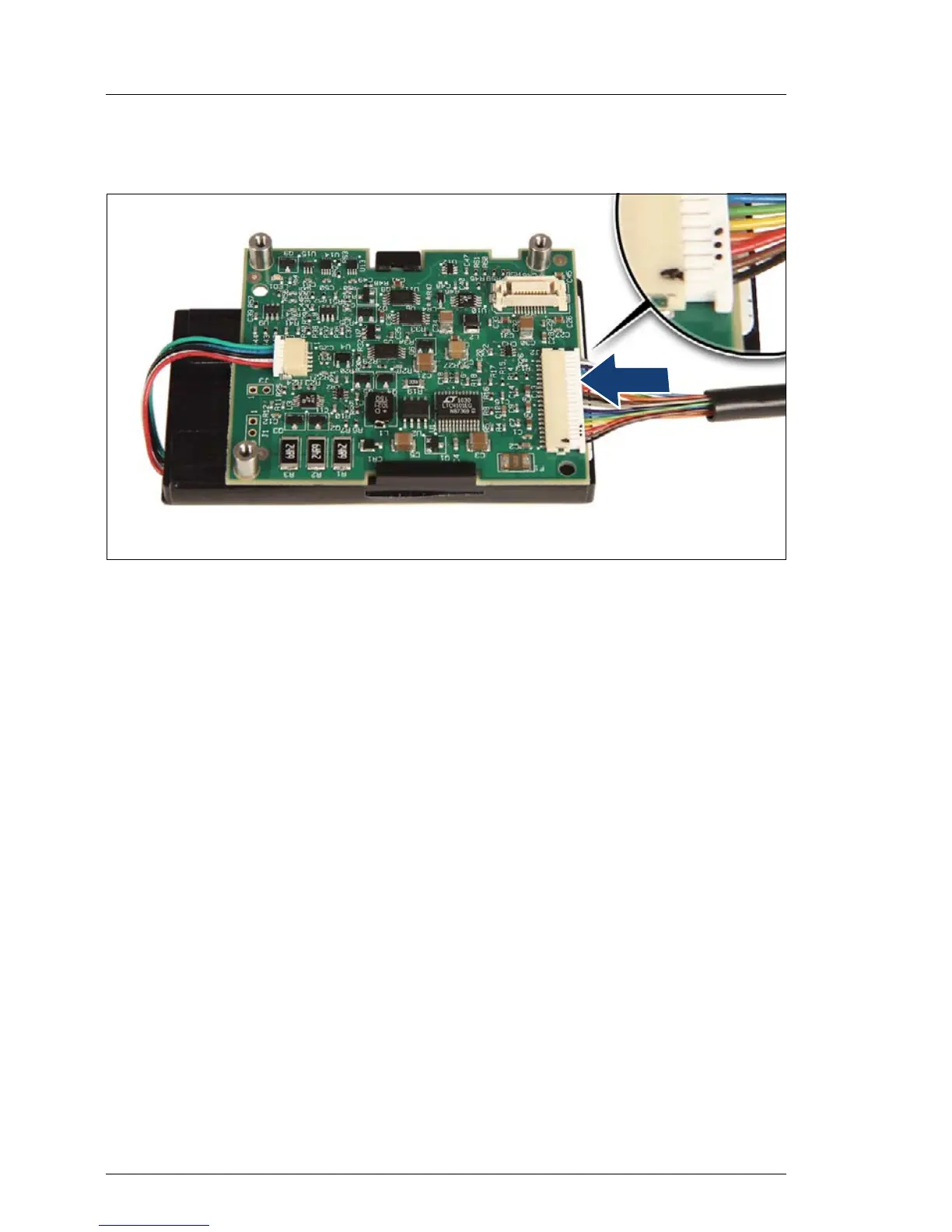

Figure 274: Connecting the BBU cable
Ê Connect the BBU cable T26139-Y3987-V2 to the BBU board as shown.
I The connector side with the three dots points towards you.
