432 Upgrade and Maintenance Manual TX120 S3
Appendix

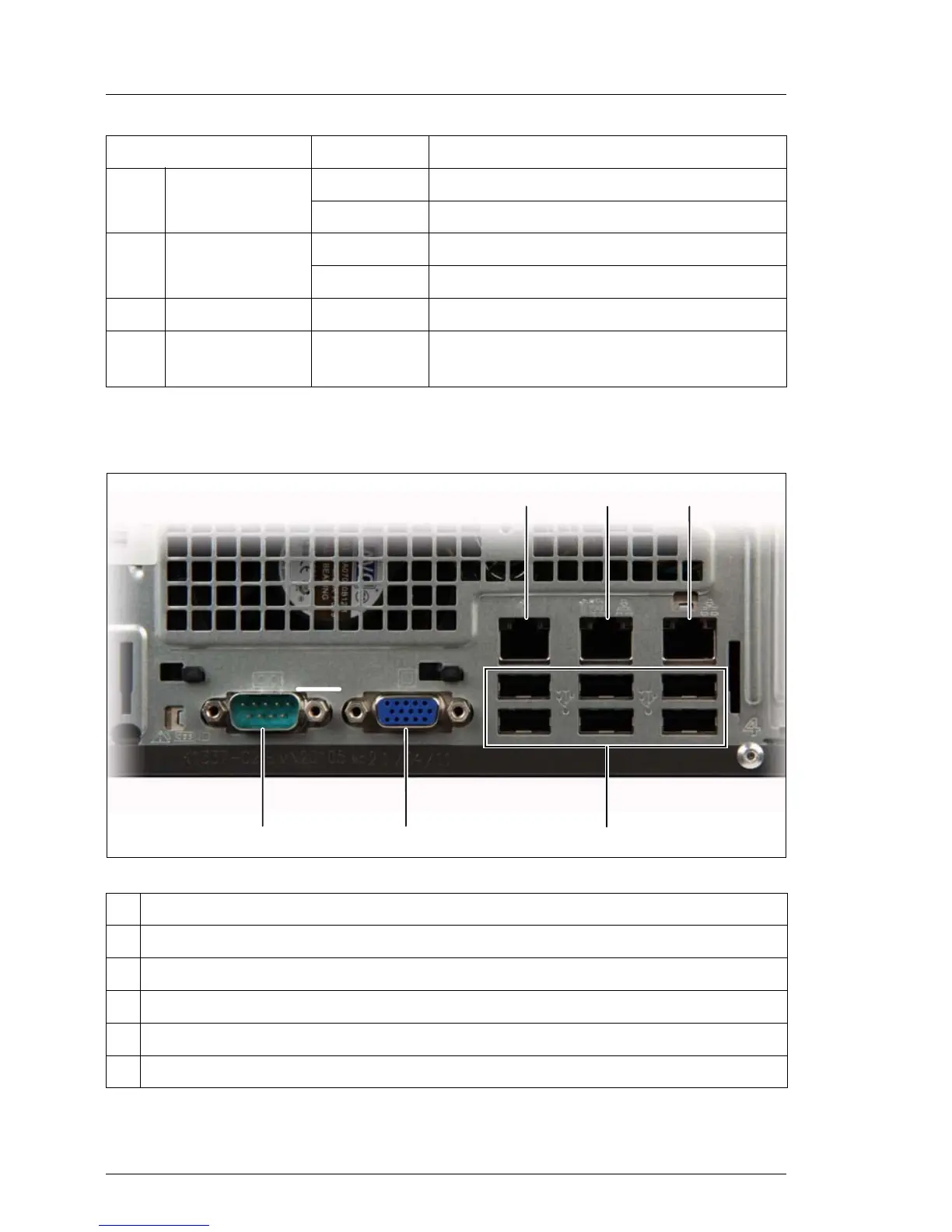

16.3.1.4 I/O panel connectors
E System fans
off fan running
orange on fan failure
F PCI card
off PCI card operational
orange on PCI card failure
G AUX power yellow on AUX voltages are within range
H iRMC
green
flashing
iRMC S3 management controller is
operational
1 Management LAN connector
2 Shared LAN connector
3 Standard LAN connector
4 6 USB connectors
5 Video connector (blue)
6 Serial connector COM1 (turquoise)
Indicator Status Description
3
4 2
