TX120 S3 Upgrade and Maintenance Manual 379
Cables

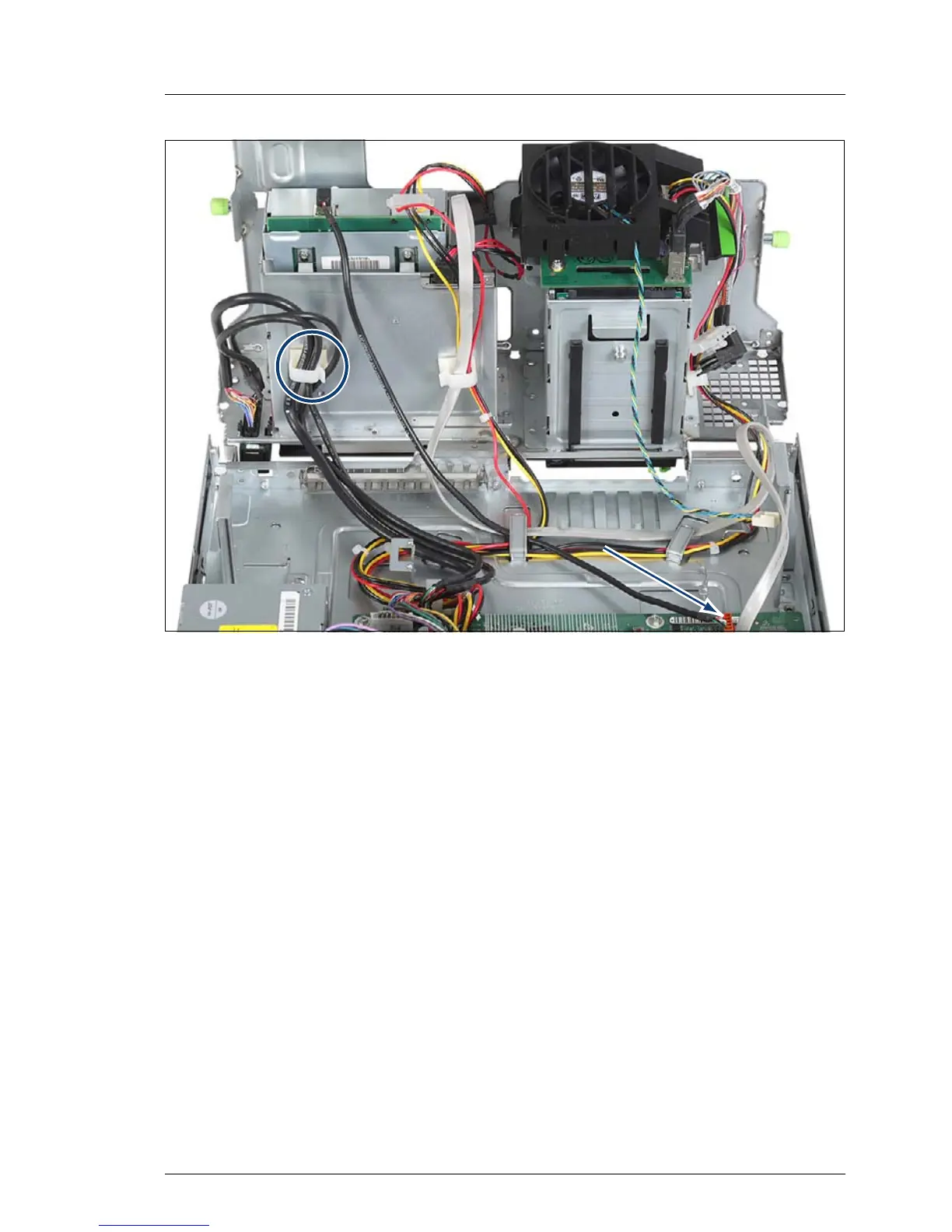

Figure 234: Inserting the front panel cable into the cable clamp.
Ê Run the front panel cable through the cable clamp.
15.3.5 Concluding steps
Perform the following procedures to complete the task:
Ê Close the server cover as described in section "Closing the server" on
page 70.
Ê Reconnect the AC power cord to the power supply unit and secure it with a
cable tie as described in section "Switching on the server" on page 77.
