378 Upgrade and Maintenance Manual TX120 S3
Cables

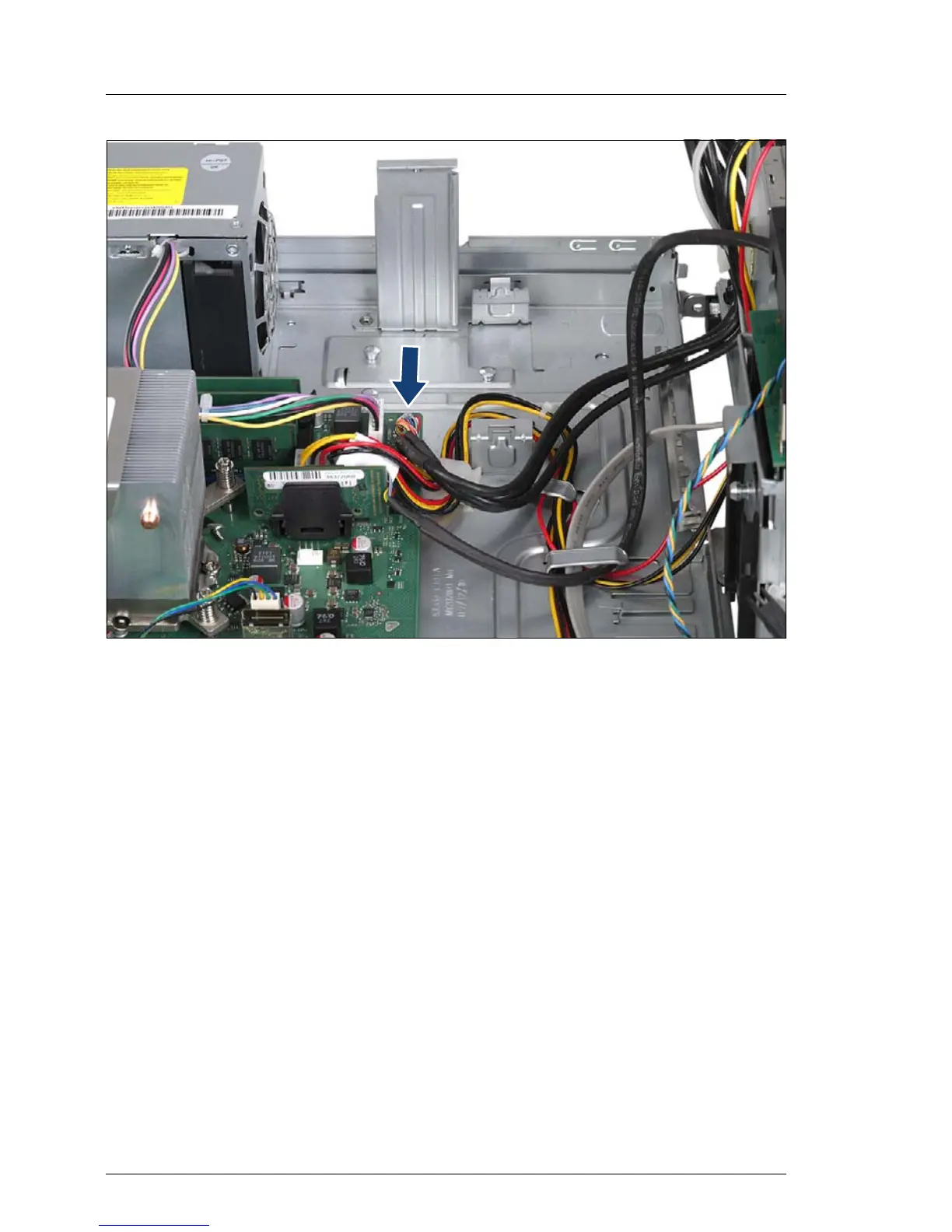

Figure 233: Connecting front panel cables to the systemboard
Ê Connect the front panel cable Y4015-V1 to the system board connector
FRONTPANEL.
