324 Upgrade and Maintenance Manual TX120 S3
System board and components

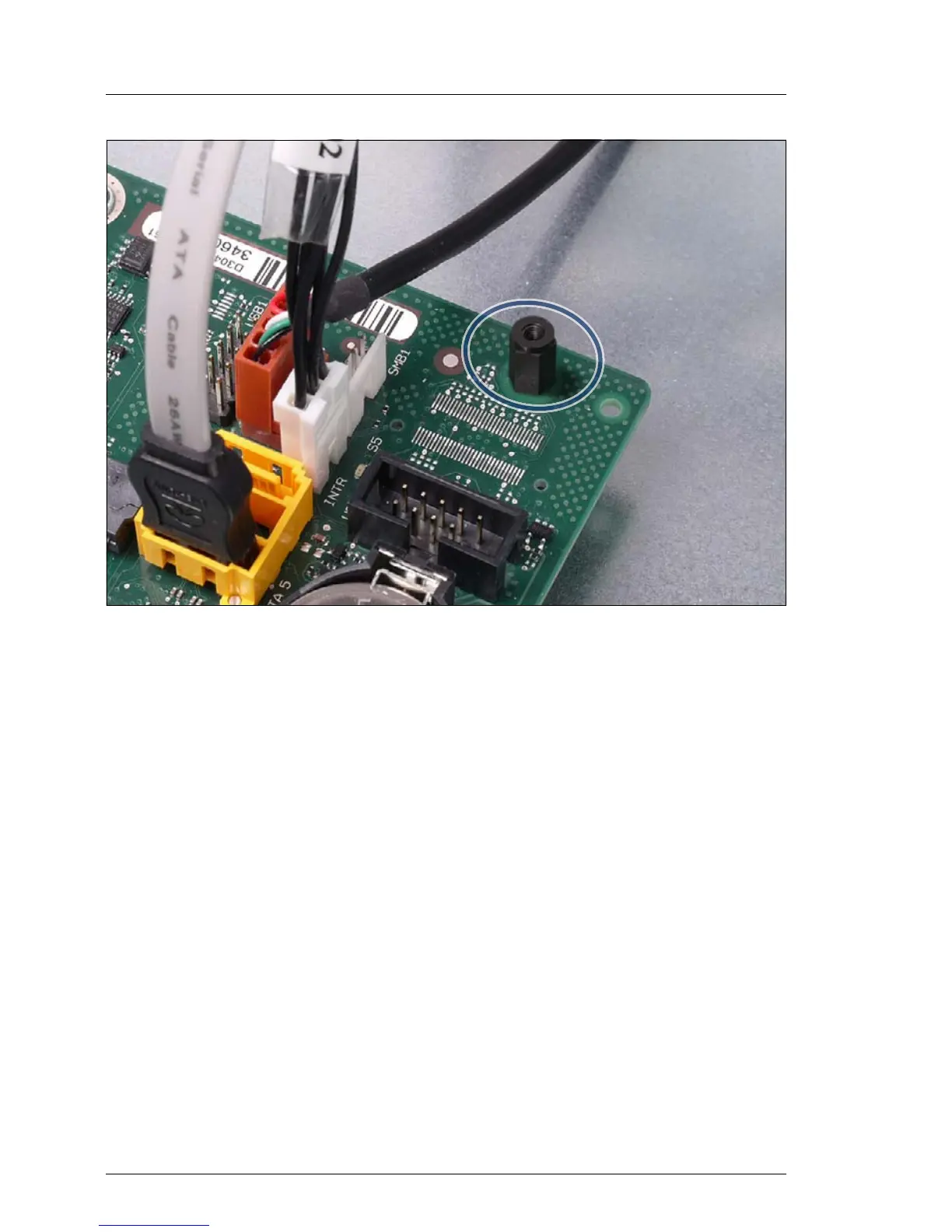

Figure 193: Removing the UFM board (B)
Ê The UFM spacer remains on the system board.
14.2.2.4 Concluding steps
Perform the following procedures to complete the task:
Ê Close the server cover as described in section "Closing the server" on
page 70.
Ê Reconnect the AC power cord to the power supply unit.
Ê If BitLocker functionality is used and has been disabled before starting the
maintenance task, re-enable BitLocker as described in section "Enabling
BitLocker functionality" on page 103.
