402 Upgrade and Maintenance Manual TX120 S3
Cables
15.6.4.1 Removing the SAS / SATA cable

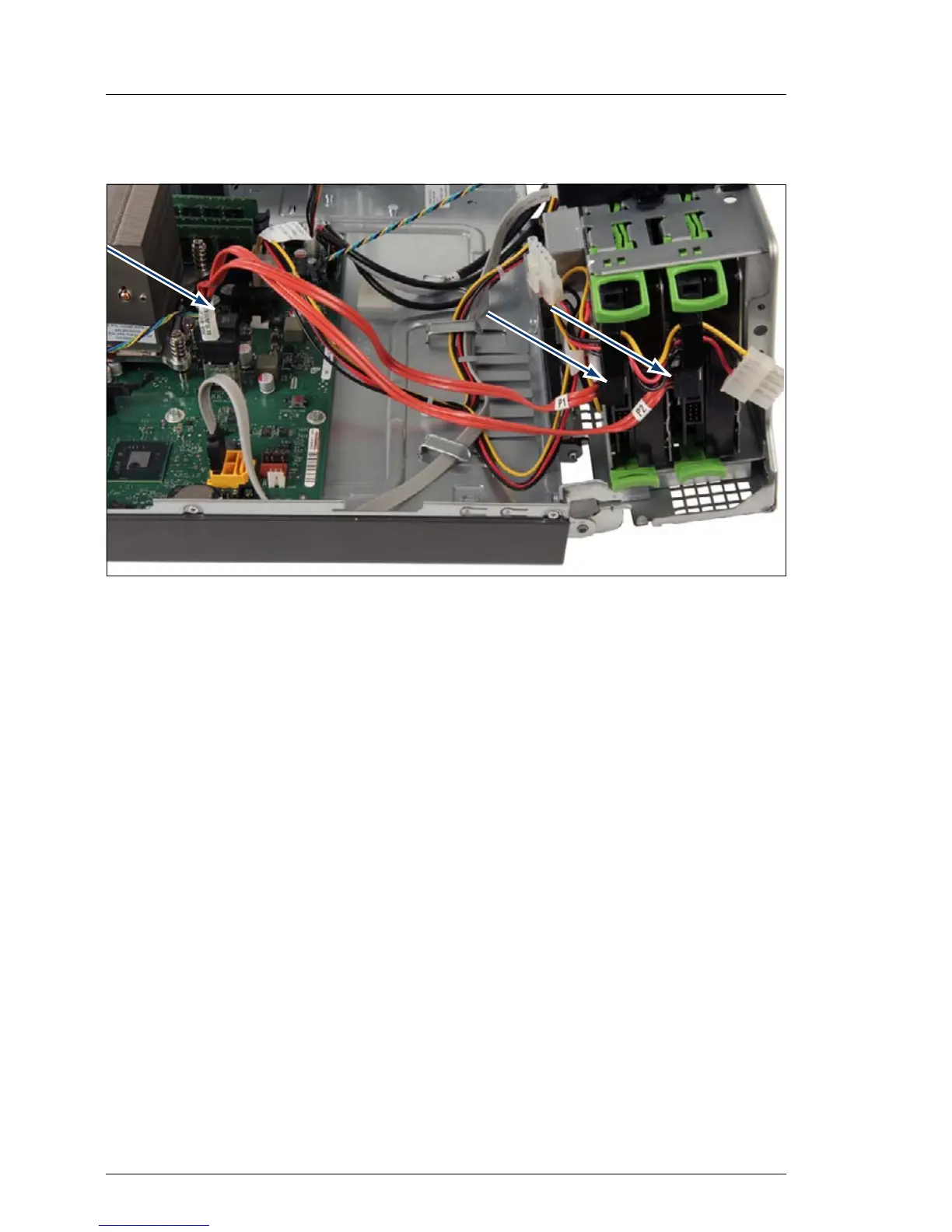

Figure 260: Removing the SAS / SATA cable (3.5-inch HDD model) (A)
Ê Disconnect the SAS / SATA cable from system board connector SATA
MLC1.
Ê Disconnect the SAS / SATA cable from the 3.5-inch HDD.
