Fujitsu PRIMERGY TX120 S3 - Installing the ODD SATA Cable

TX120 S3 Upgrade and Maintenance Manual 395
Cables
Ê Disconnect the ODD SATA cable from system board connector SATA 5.

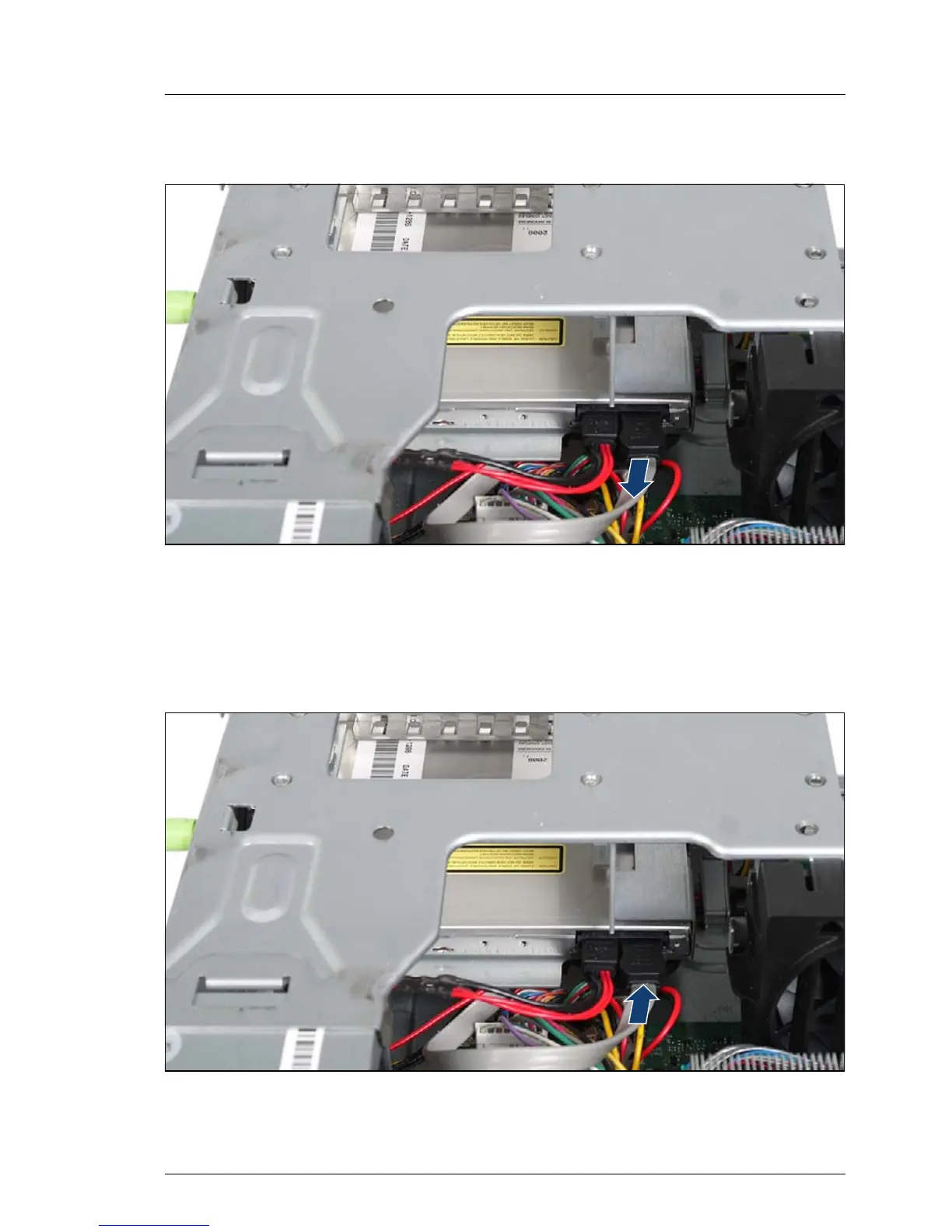

Figure 252: Disconnecting the ODD SATA cable (B)
Ê Disconnect the ODD SATA cable from the optical disk drive.
15.5.4 Installing the ODD SATA cable
Figure 253: Connecting the ODD SATA cable (A)
Ê Reconnect the new ODD SATA cable to the optical disk drive.
