TX120 S3 Upgrade and Maintenance Manual 403
Cables
15.6.4.2 Installing the SAS / SATA cable

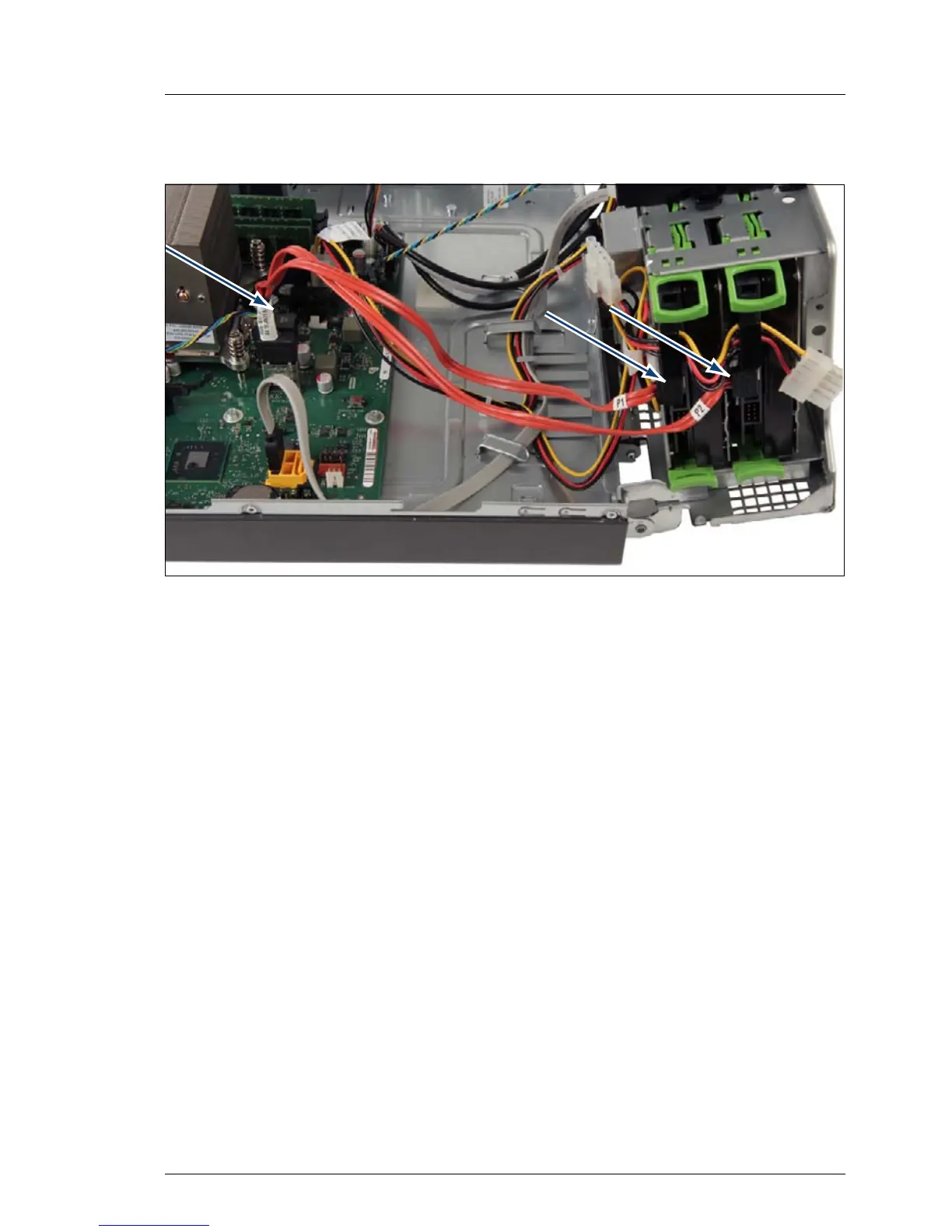

Figure 261: Installing the SAS / SATA cable (3.5-inch HDD model) (A)
Ê Reconnect the new SAS / SATA cable to the 3.5-inch HDD SAS / SATA
backplane connector X1.
Ê Recconnect the new SAS / SATA cable to system board connector SATA
MLC1.
15.6.5 Concluding steps
Perform the following procedures to complete the task:
Ê Close the server cover as described in section "Closing the server" on
page 70.
Ê Reconnect the AC power cord to the power supply unit and secure it with a
cable tie as described in section "Connecting the server to the mains" on
page 73.
