TX120 S3 Upgrade and Maintenance Manual 123
Hard disk drives / solid state drives
V CAUTION!
Save the dummy module for future use.
Always replace dummy modules into unused HDD / SSD bays to
comply with applicable EMC regulations and satisfy cooling
requirements.
7.2.2.4 Installing a 2.5-inch HDD / SSD module

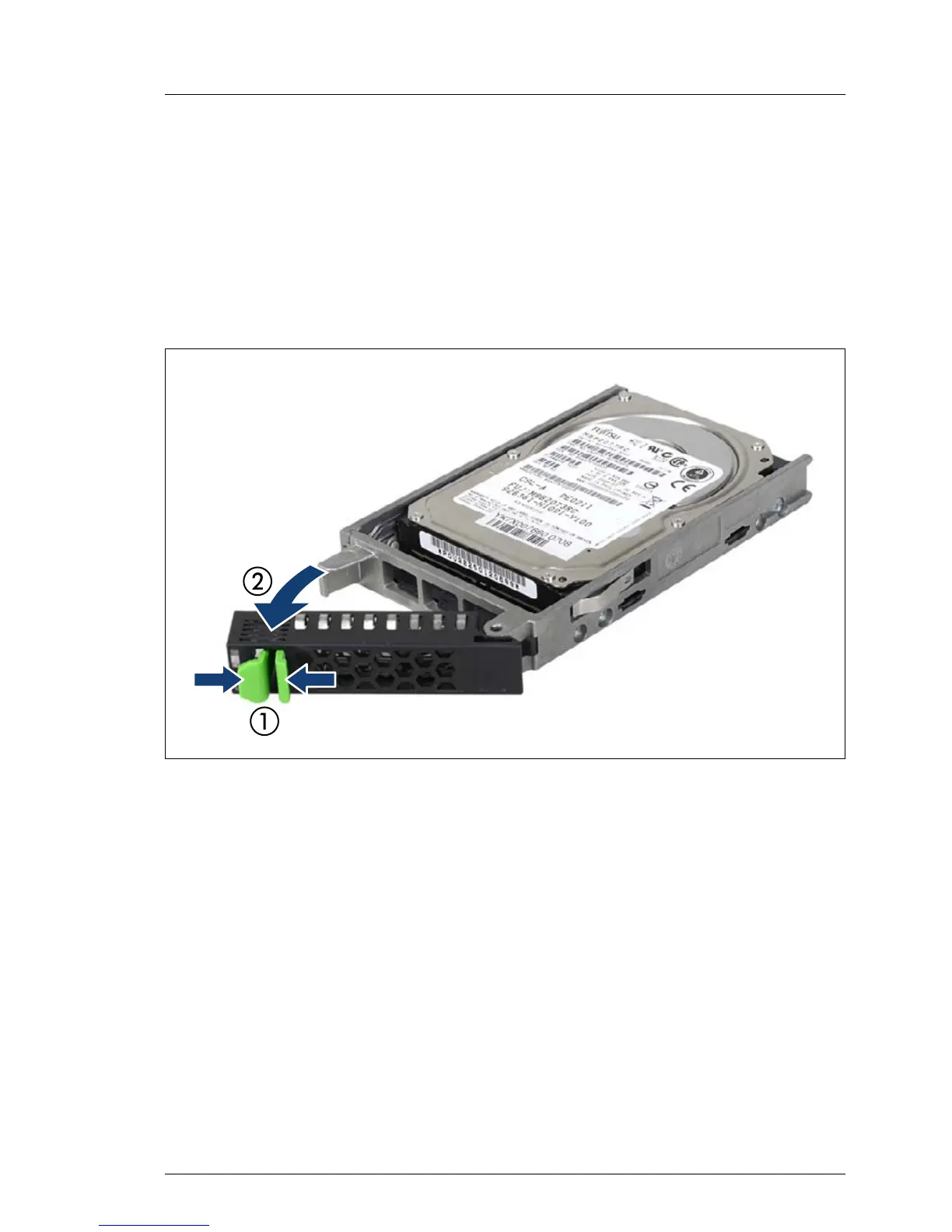

Figure 37: Opening the 2.5-inch HDD / SSD module locking lever
Ê Pinch the green locking clips (1) and open the locking lever (2).
