Cables

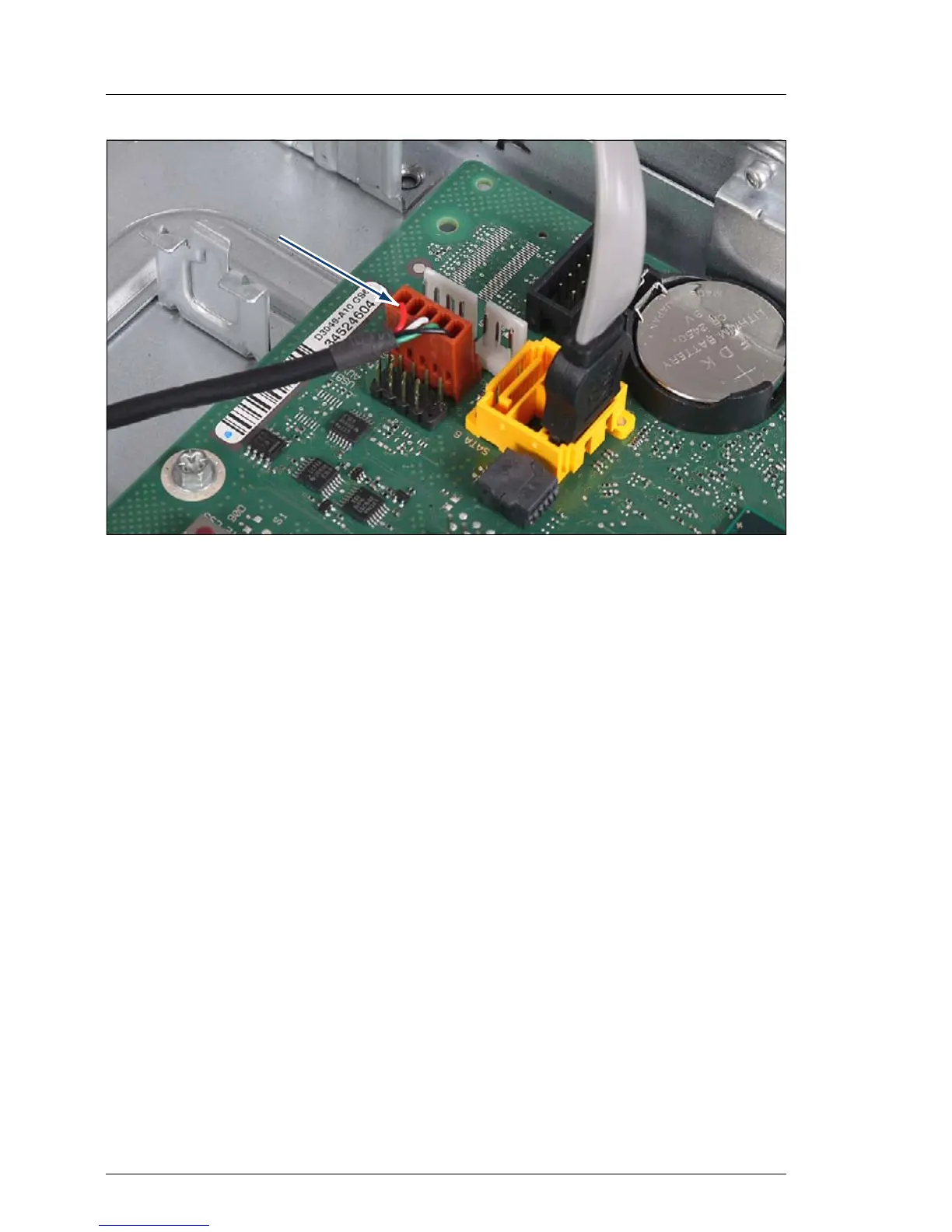

Figure 266: Installing the backup drive USB cable (B)
Ê Reconnect the 6-pin connector of the new backup drive USB cable to
system board connector USB1 DAT.
I Notes on RDX drive USB cabling:
– A USB 2.0 RDX drive may be replaced by a USB 3.0 RDX drive
with previous cabling.
– A USB 3.0 RDX drive may be connected to a USB 2.0 cable with
limited performance.
– A USB 3.0 RDX drive may be connected to an onboard USB 2.0
connector with limited performance.
– For full performance, connect the USB 3.0 RDX drive to a USB 3.0
interface card by USB 3.0 cable.
– The USB 3.0 cable cannot be connected to a USB 2.0 RDX drive.
15.7.5 Concluding steps
Perform the following procedures to complete the task:
Ê Close the server cover as described in section "Closing the server" on
page 70.
