206 Upgrade and Maintenance Manual TX120 S3
Expansion cards and backup units
9.3.4.3 Disconnecting the FBU adapter cable from the TFM

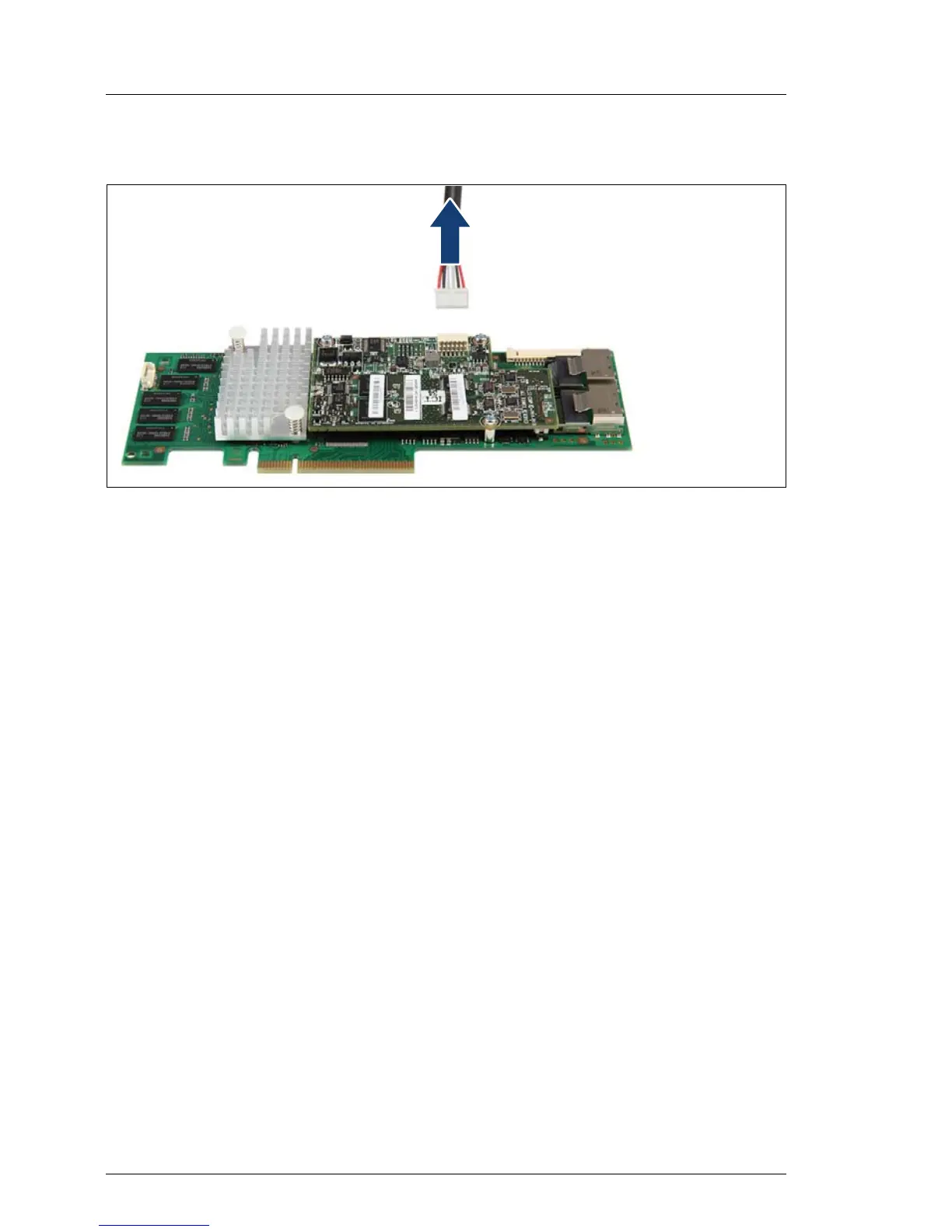

Figure 101: Disconnecting the FBU adapter cable from the TFM
Ê Disconnect the FBU adapter cable from the TFM.
Ê Remove the FBU adapter cable from the cable clamp (see figure 99 on
page 203).
9.3.4.4 Removing the FBU holder from the chassis
Ê Remove the FBU holder from the chassis as described in section "Removing
the BBU holder from the chassis" on page 204.
9.3.4.5 Concluding steps
Perform the following procedures to complete the task:
Ê Close the front cage as described in section "Closing the front cage" on
page 68.
Ê Close the server cover as described in section "Closing the server" on
page 70.
Ê Reconnect the AC power cord to the power supply unit.
