150
Upgrade and Mai
ntenance Manual
TX120
S3
Hard disk drives / solid st
ate drives
7.4.1.6
Inst
alling th
e air duct (if appl
icable)

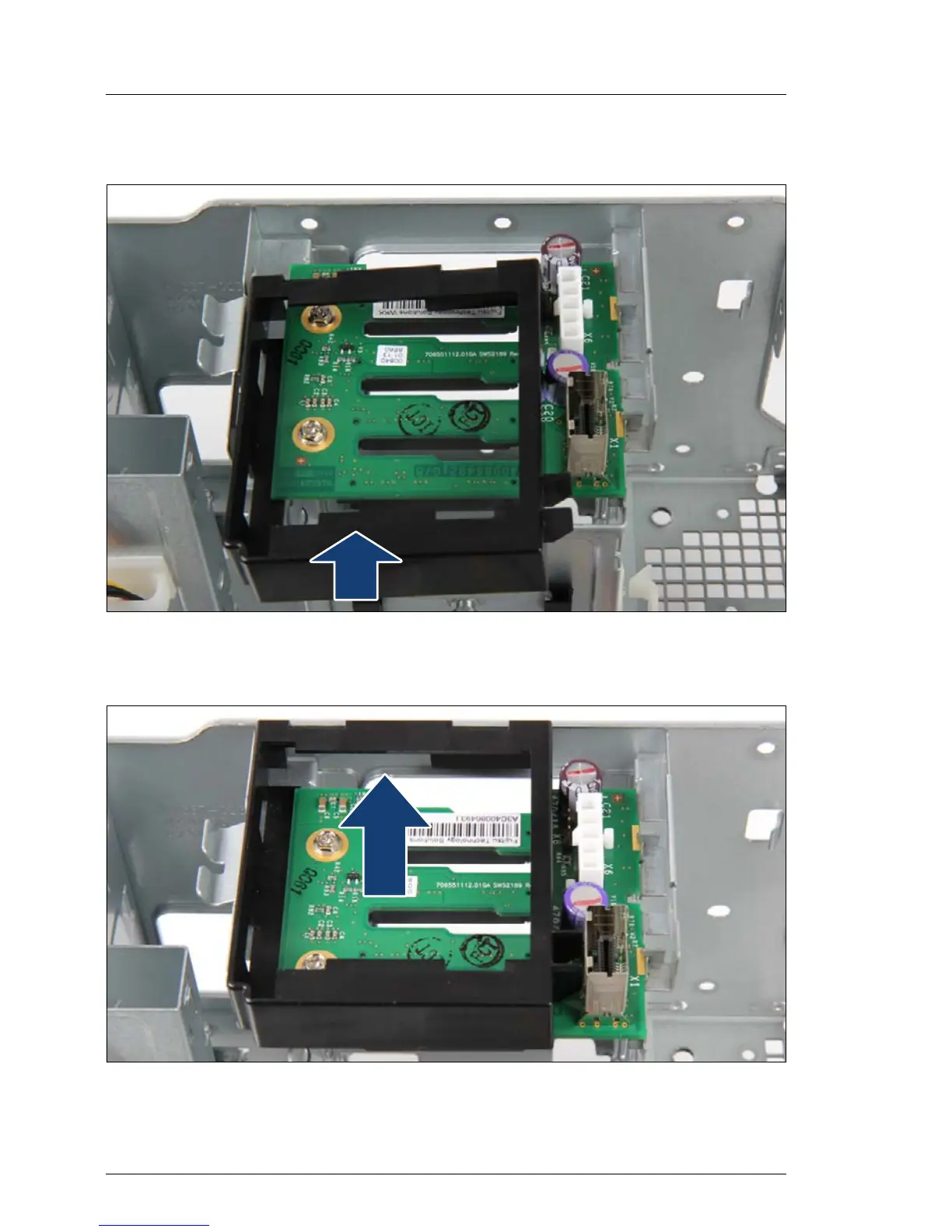

Figure 57: Insert
ing the air duct
Ê
Insert the air duct in a slight angle.
Figure 58: Positioning the air
duc
t
Ê
Push the air duct to the chassis as far as possible.
149
151
