TX120 S3 Upgrade and Maintenance Manual 149
Hard disk drives / solid state drives

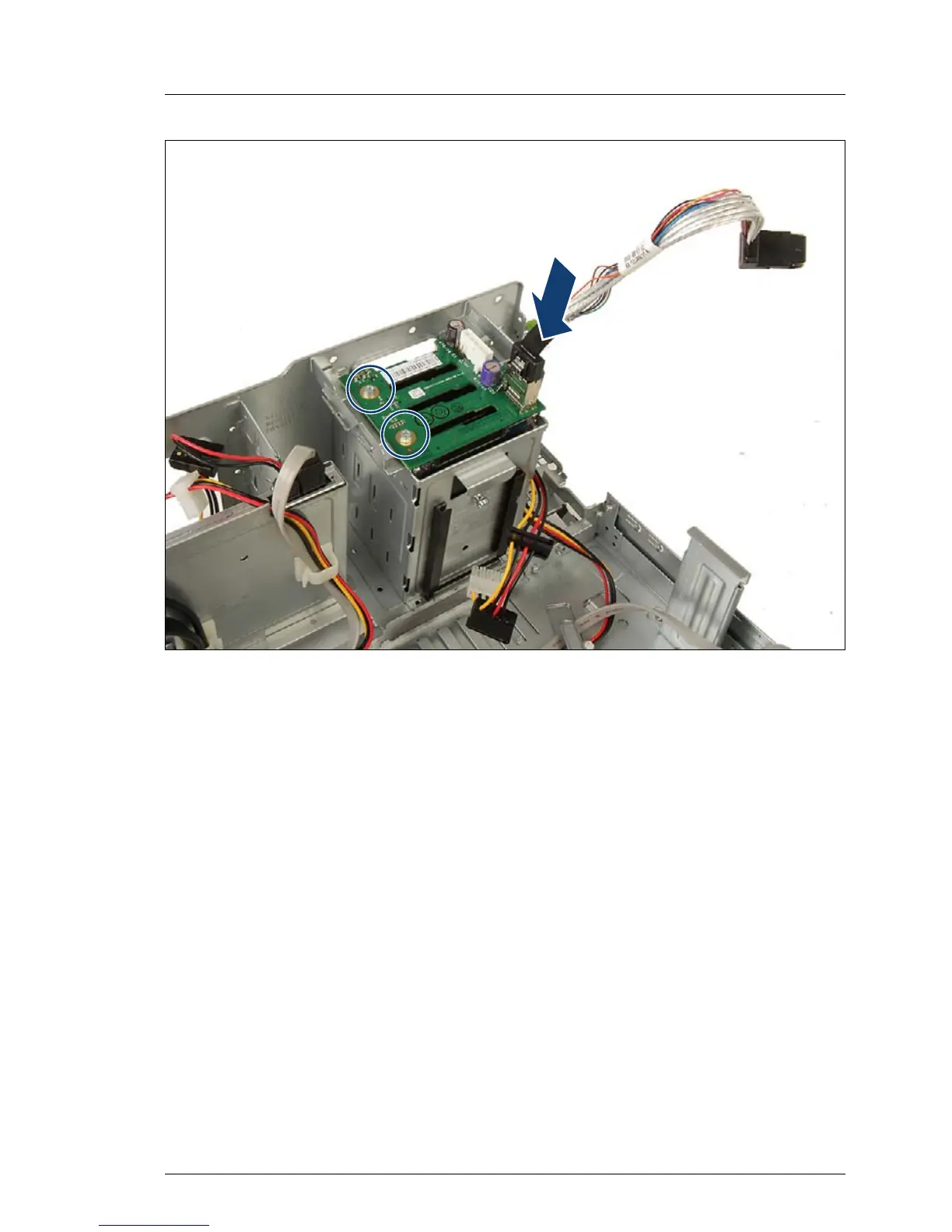

Figure 56: Connecting cables from the 2.5-inch HDD SAS / SATA backplane
Ê Secure the 2.5-inch HDD SAS/SATA backplane on the drive cage with the
two screws (M3 x 4.5 mm).
Ê Reconnect the SATA cable to the 2.5-inch HDD SAS/SATA backplane.
