TX120 S3 Upgrade and Maintenance Manual 177
Expansion cards and backup units
9.2.1.3 Removing a PCI slot bracket

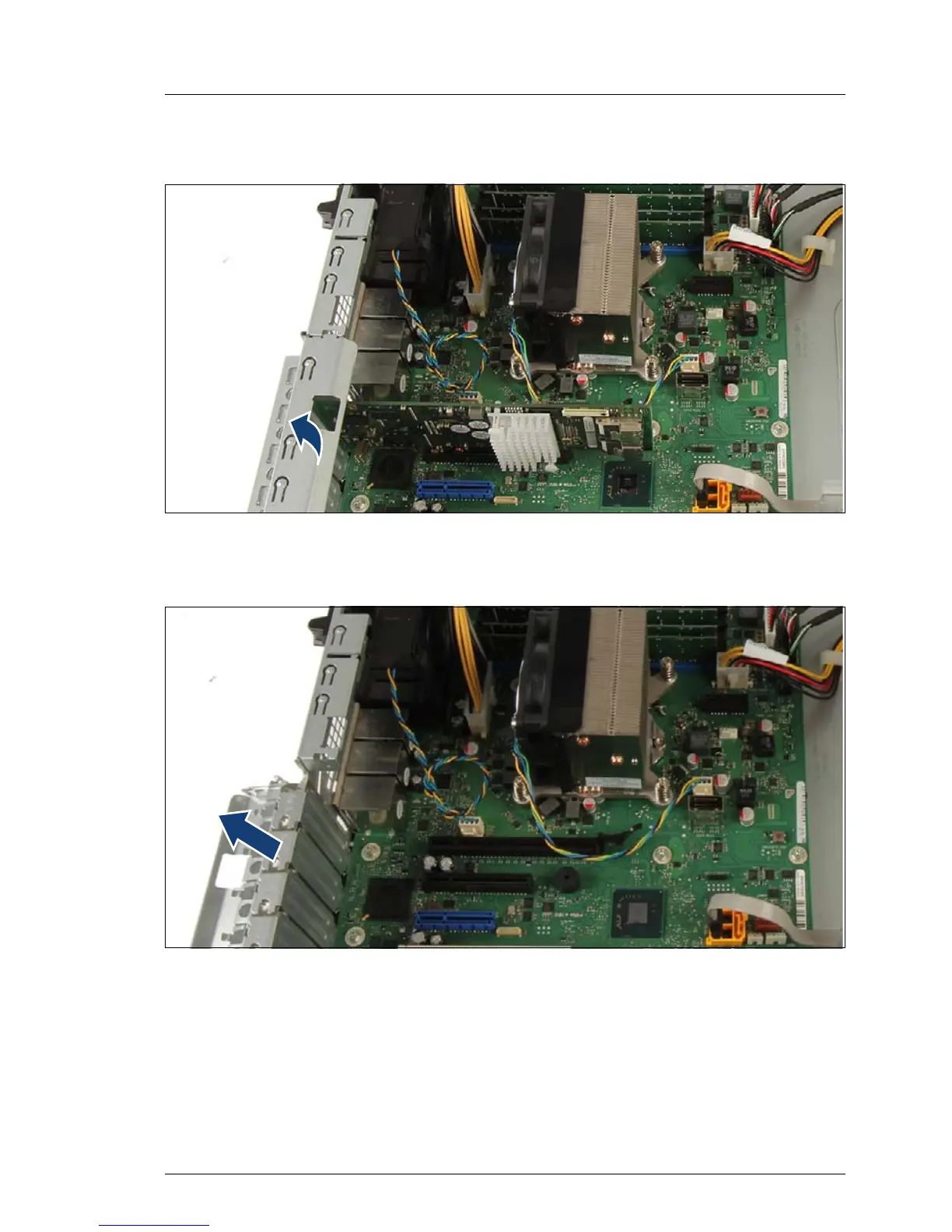

Figure 79: Opening the PCI slot bracket clamp
Ê Fold up the slot bracket clamp.
Figure 80: Removing the PCI slot bracket
Ê Remove the slot bracket.
V CAUTION!
Keep the slot bracket for further use. Always replace slot brackets
into unused PCI slot openings to comply with applicable EMC
regulations and satisfy cooling requirements.
