396 Upgrade and Maintenance Manual TX120 S3
Cables

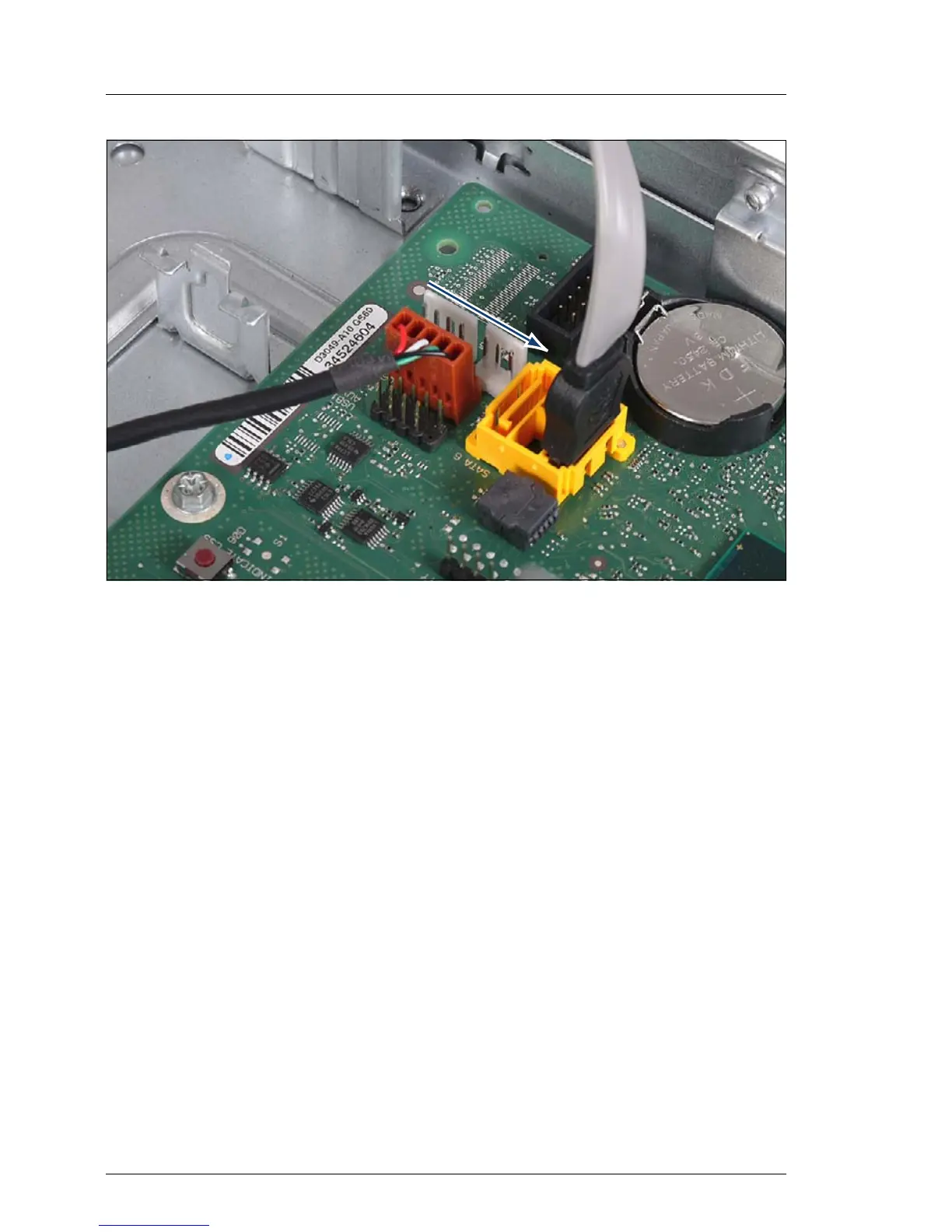

Figure 254: Connecting the ODD SATA cable (B)
Ê Reconnect the new ODD SATA cable to system board connector SATA 5 (1).
Ê Run the ODD SATA cable through the cable clamps (see arrows) as shown
(2).
15.5.5 Concluding steps
Perform the following procedures to complete the task:
Ê Close the server cover as described in section "Closing the server" on
page 70.
Ê Reconnect the AC power cord to the power supply unit and secure it with a
cable tie as described in section "Connecting the server to the mains" on
page 73.
