Fujitsu PRIMERGY TX120 S3 - Installing the New TFM; Concluding Steps

TX120 S3 Upgrade and Maintenance Manual 187
Expansion cards and backup units

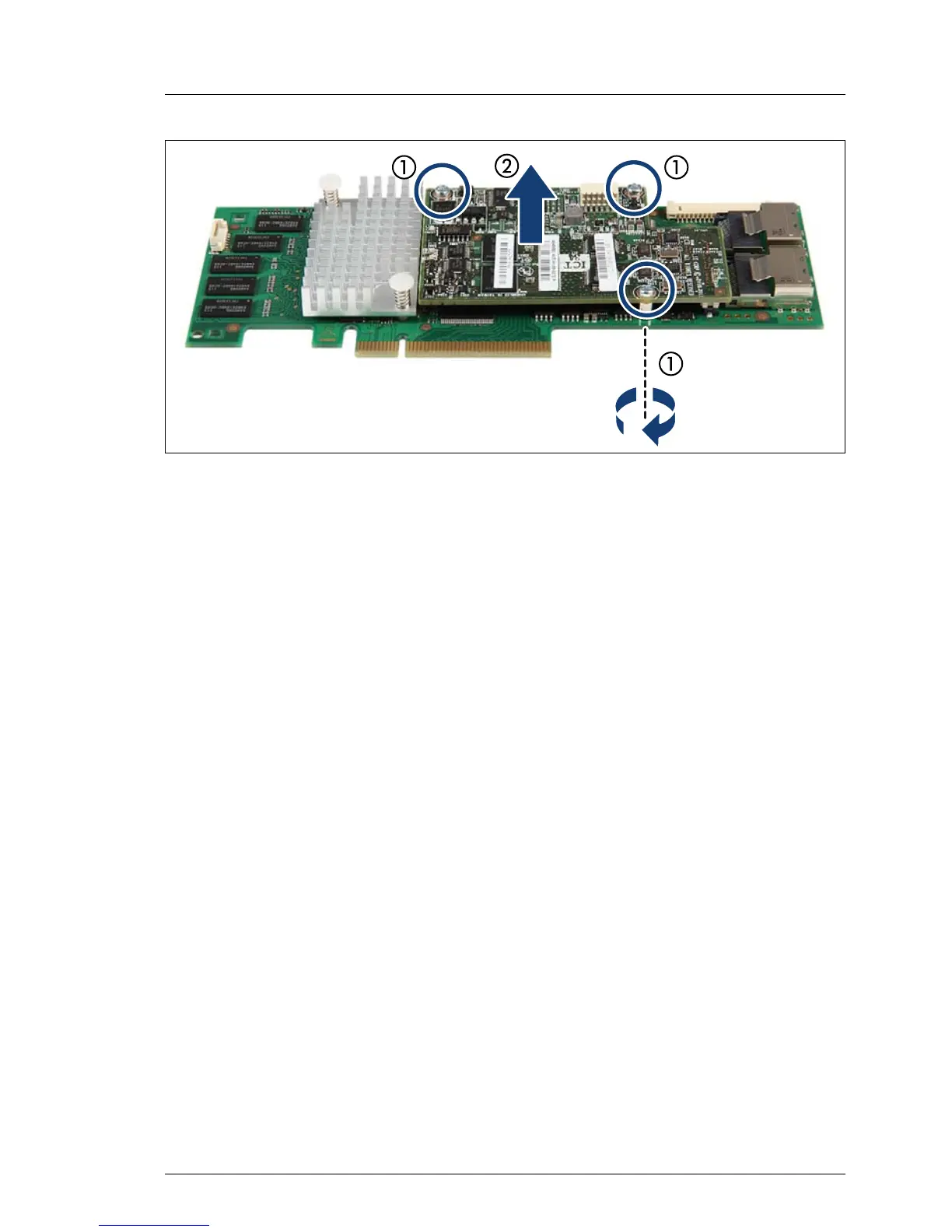

Figure 84: Removing the TFM
Ê Remove the three screws (1).
Ê Remove the TFM (2).
9.2.4.4 Installing the new TFM
Ê Install the new TFM as described in section "Installing TFM to the RAID
controller (if applicable)" on page 198.
Ê Connect the FBU adapater cable to the TFM as described in section
"Connecting the FBU adapter cable to the TFM" on page 200.
Ê Install the expansion card as described in section "Installing expansion
cards" on page 176.
9.2.4.5 Concluding steps
Perform the following procedures to complete the task:
Ê Close the server cover as described in section "Closing the server" on
page 70.
Ê If applicable, connect external cables to the expansion card.
Ê Reconnect the AC power cord to the power supply unit.
