TX120 S3 Upgrade and Maintenance Manual 157
System fan and HDD fan
8.1.5 Installing the fan into the holder

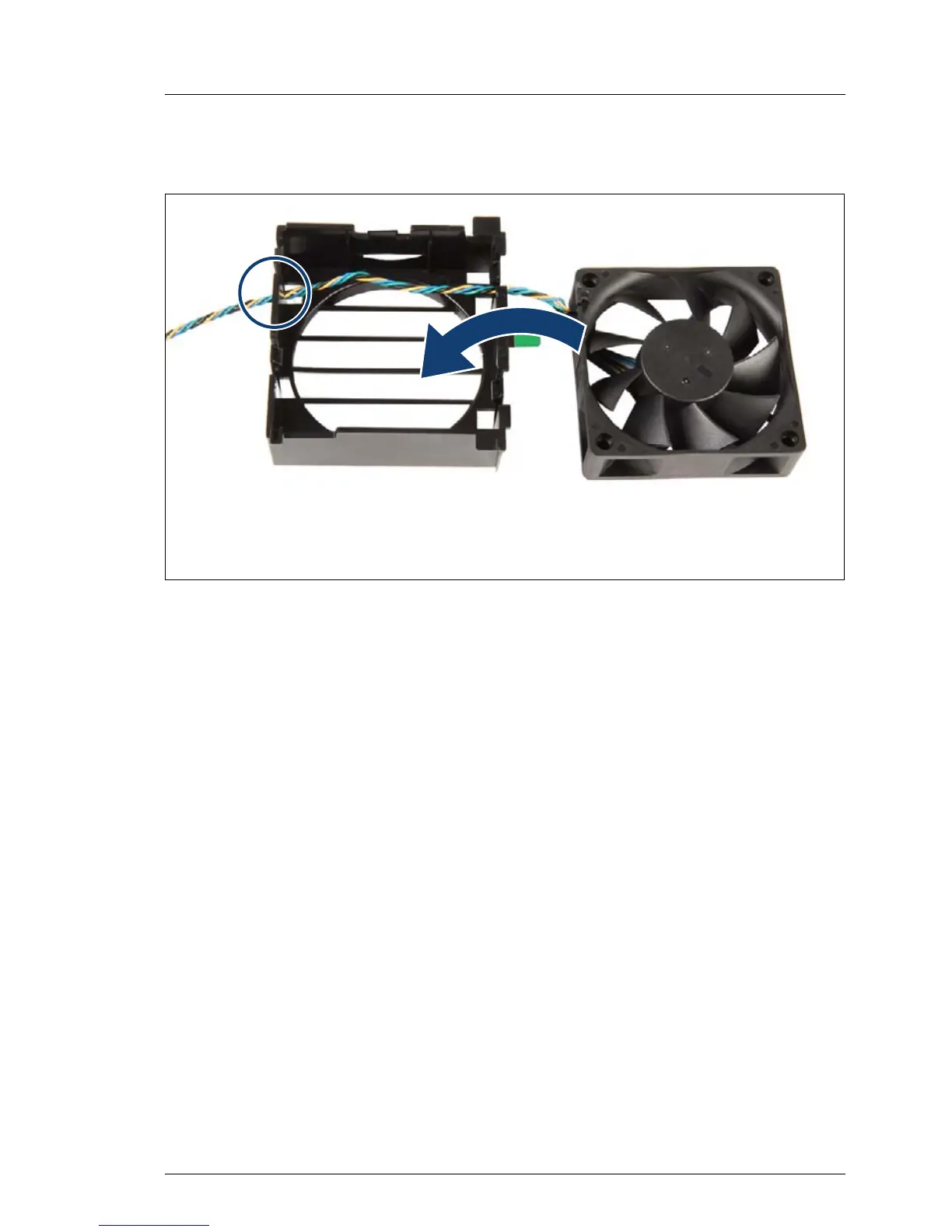

Figure 63: Insertiing the fan into the 3.5-inch holder
Ê Route the cable as shown (see circle).
Ê Insert the fan into the holder (see arrow).
