Fujitsu PRIMERGY TX120 S3 - Removing the Backup Drive USB Cable

TX120 S3 Upgrade and Maintenance Manual 405
Cables
Ê Remove the AC power cord from the cable tie and disconnect it from the
system as described in section "Disconnecting power cords" on page 59.
Ê Open the server cover as described in section "Opening the server" on
page 61 (rack server).
15.7.3 Removing the backup drive USB cable

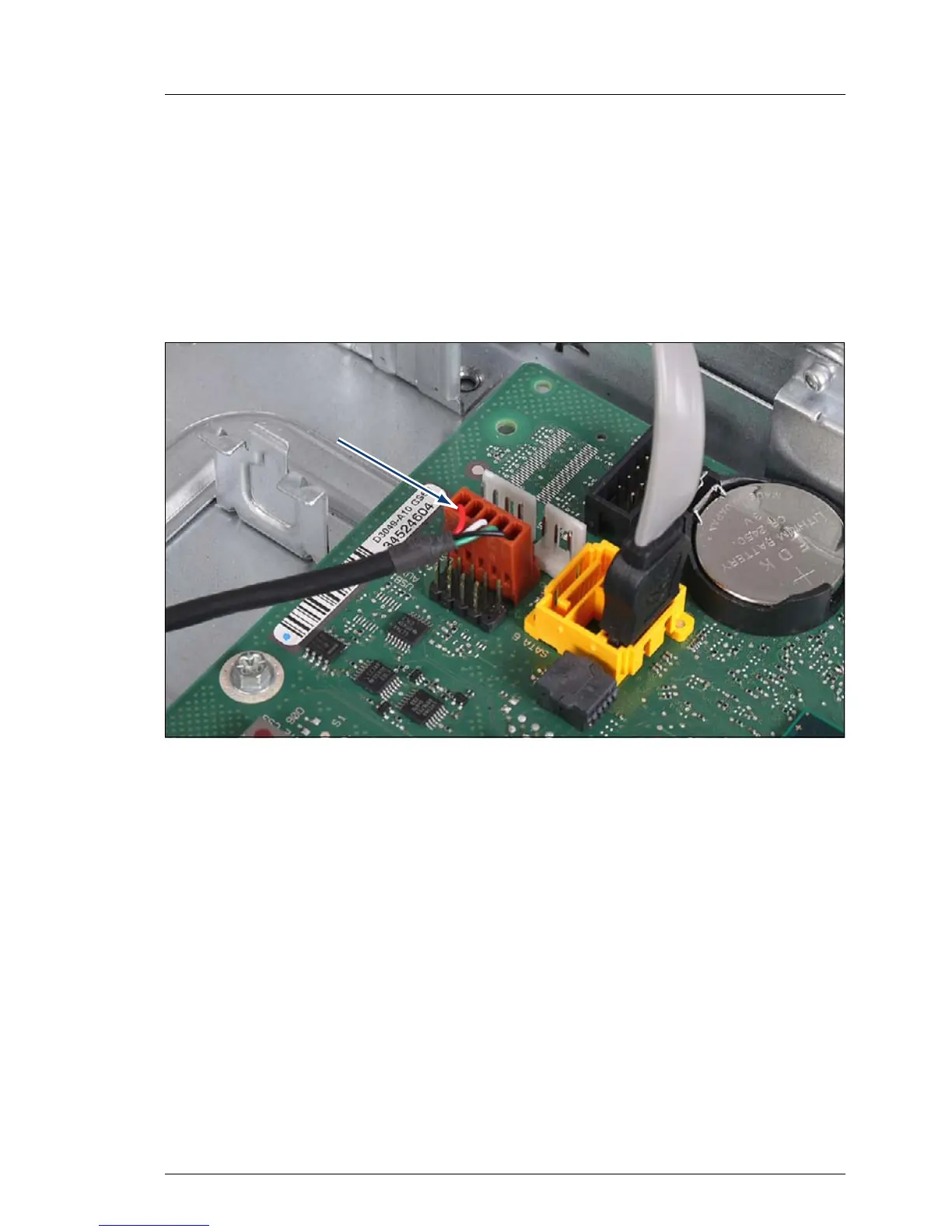

Figure 263: Removing the backup drive USB cable (A)
Ê Disconnect the backup drive USB cable from system board connector USB1
DAT.
I Notes on RDX drive USB cabling:
If the backup drive is connected via an USB 3.0 interface card,
disconnect the USB cable from the interface card.
