TX120 S3 Upgrade and Maintenance Manual 381
Cables
15.4.2 Preliminary steps
Before replacing the power cable, perform the following steps:
Ê Locate the defective server as described in section "Locating the defective
server" on page 50.
Ê Shut down the server as described in section "Shutting down the server" on
page 58.
Ê Remove the AC power cord from the cable tie and disconnect it from the
system as described in section "Connecting the server to the mains" on
page 73.
Ê Open the server cover as described in section "Opening the server" on
page 61.
15.4.3 Removing the power cable

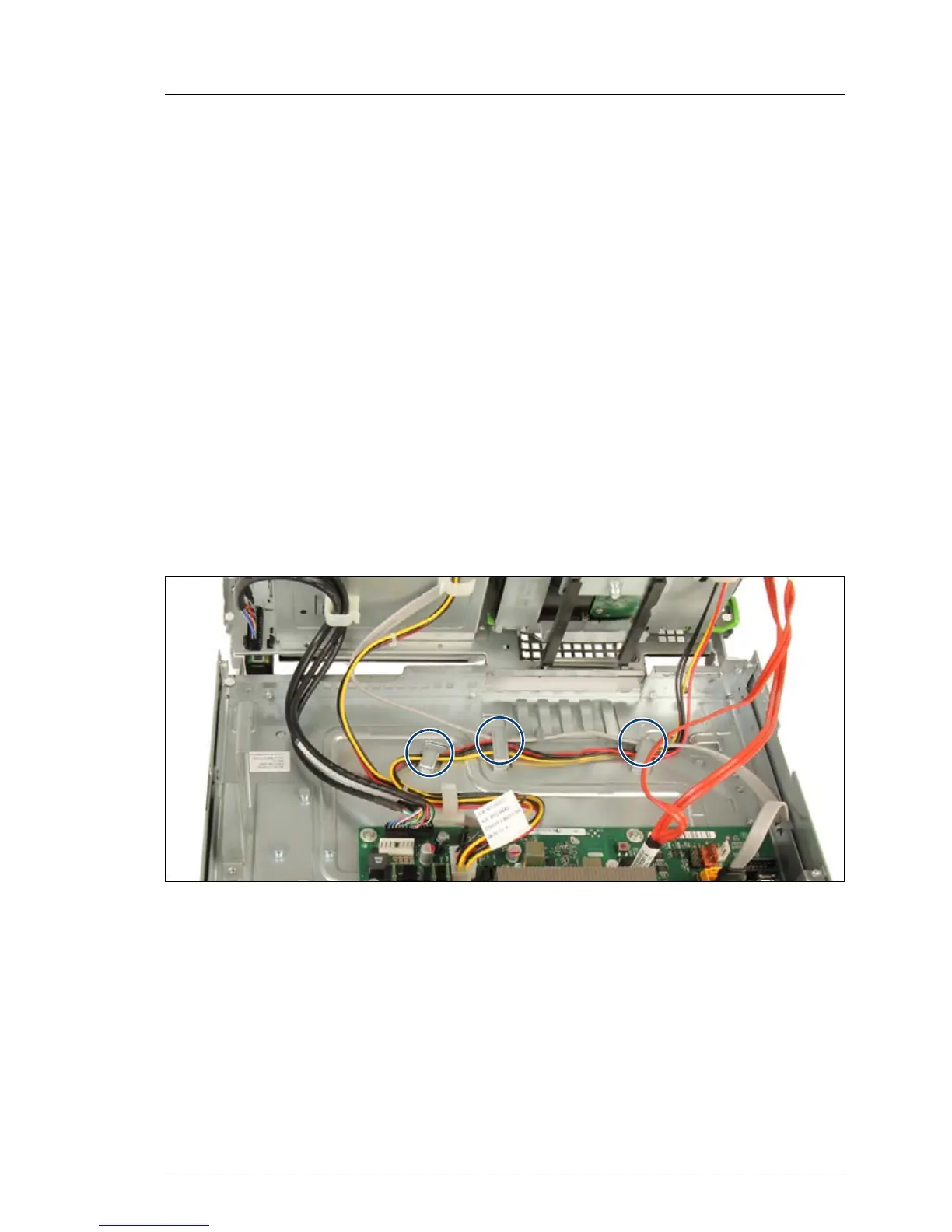

Figure 236: Detaching the power cable
Ê Remove the power cable T26139-Y4012-V501 from the three cable clamps
next to the drive bays.
