Hard disk drives / solid state drives

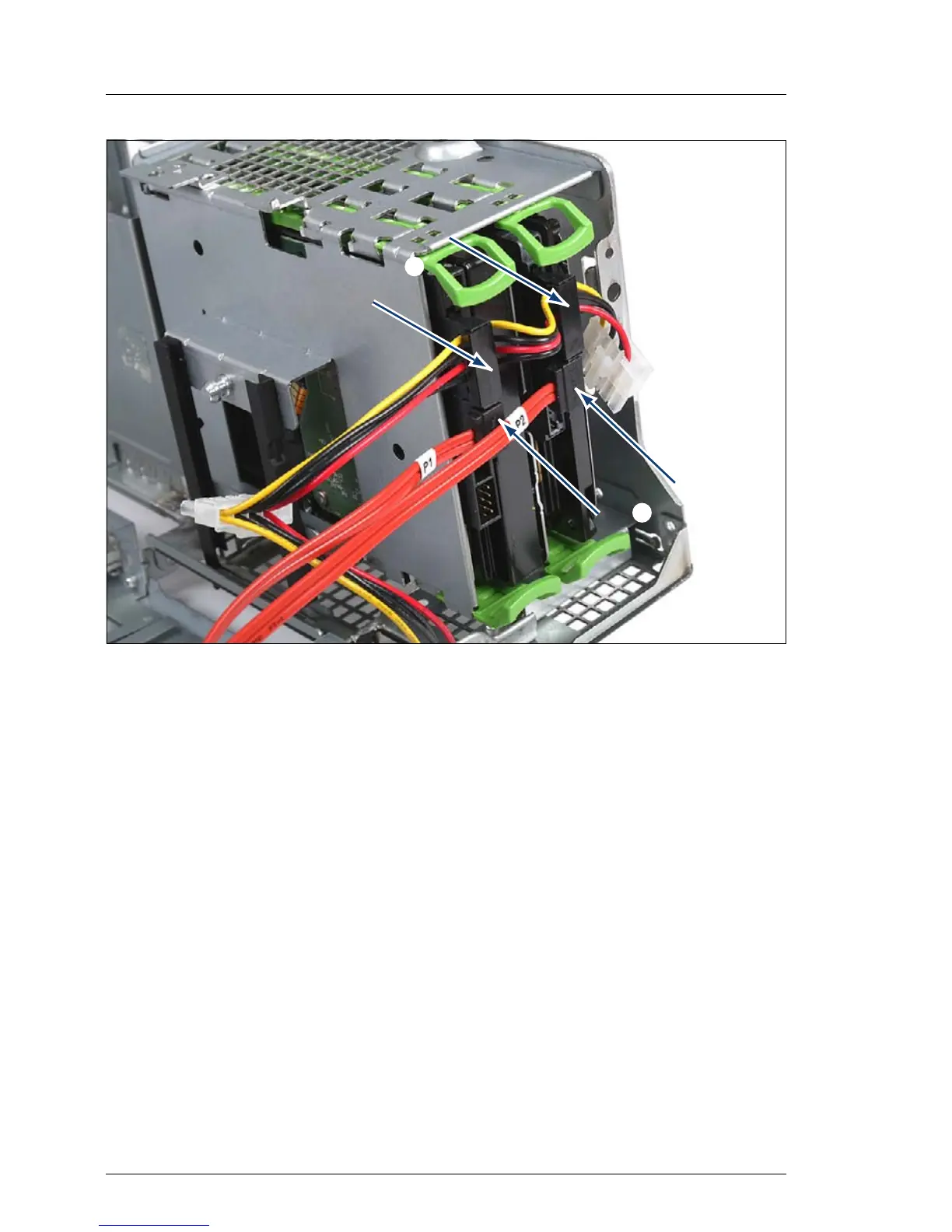

Figure 46: Connecting the cables
Ê Connect the two SATA connectors P1 and P2 on the SATA Y-cable (T26139-
Y3964-V201) to the hard disk drives (1).
Ê Connect the 15-pin SATA power connectors on SATA power cable T26139-
Y4012-V501 to the hard disk drives (2).
7.3.2.4 Concluding steps
Perform the following procedures to complete the task:
Ê Please observe the notes on RAID rebuild in section "Performing a RAID
array rebuild" on page 104.
Ê Close the front cage as described in section "Closing the front cage" on
page 68.
Ê Close the server cover as described in section "Mounting the server cover"
on page 72.
/
